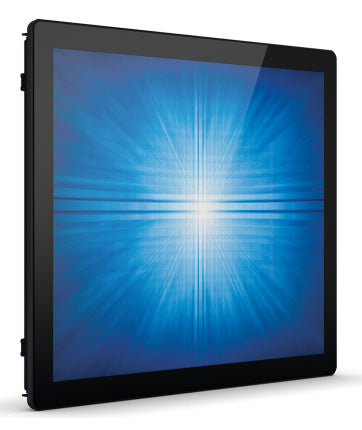

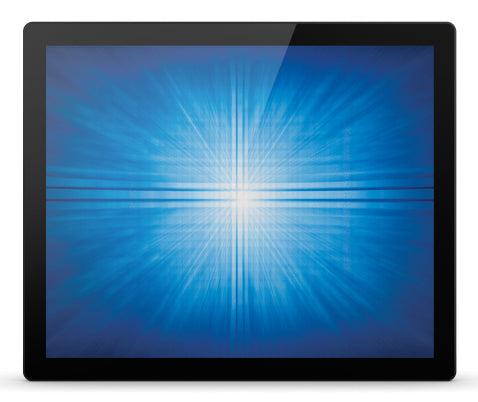

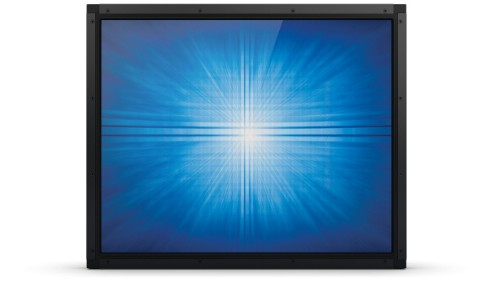

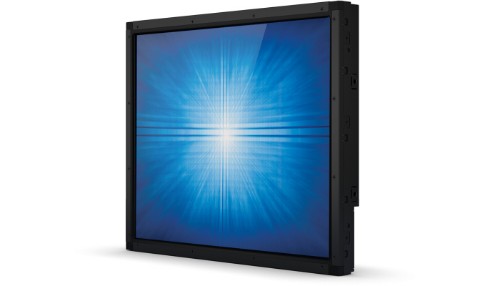

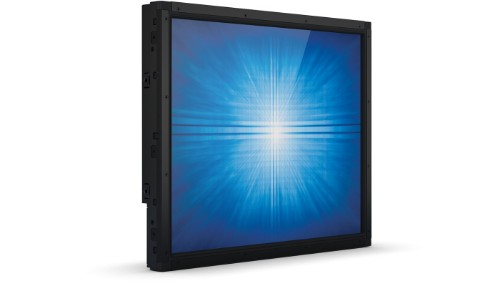

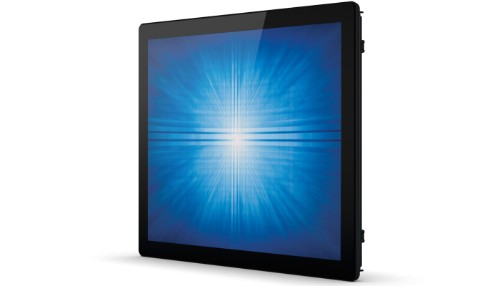

Elo Touch Solutions 1990L 48.3 cm (19") LED 225 cd/m² Black Touchscreen

1990L TouchPro PCAP, 19", 5 ms, 225 cd/m², 1280 x 1024, TFT-LCD, 1000 : 1, 5 : 4, VGA, DisplayPort, Black

Description

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- LED backlighting allows for state-of-the-art slim design while reducing power consumption
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces

Specifications

Display
Display number of colours	16.78 million colours
Touchscreen	Yes
Display technology	LED
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Display brightness	225 cd/m²
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Vertical scan range	50 - 75 Hz
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA)
Horizontal scan range	30 - 82 kHz
Touchscreen technology	Projected capacitive system
Ports & interfaces
DisplayPorts quantity	1
Design
Product colour	Black

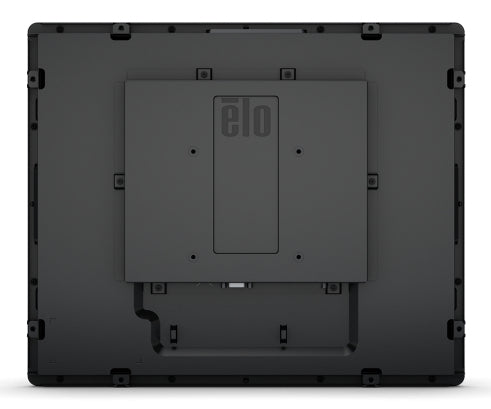

Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Power
Power consumption (off)	0.5 W
Power consumption (typical)	22 W
Power consumption (standby)	1.5 W
AC input voltage	230 V
AC input frequency	50 Hz
Packaging data
Package width	526 mm
Package depth	450 mm
Package height	190 mm
Package weight	7 kg
Cables included	HDMI, USB, VGA
Packaging content
Cables included	HDMI, USB, VGA
Operational conditions
Operating altitude	0 - 3.048 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Technical details
VESA mounting	Yes
Power supply type	DC
Depth (without stand)	50 mm
Weight (without stand)	4.6 kg
Height (without stand)	342.7 mm
Display viewable area (HxV)	376.32 x 301.06 mm
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Wall mountable	Yes
Other features
Power supply type	DC
Depth (without stand)	50 mm
Weight (without stand)	4.6 kg
Height (without stand)	342.7 mm
Display viewable area (HxV)	376.32 x 301.06 mm
Operating altitude	0 - 3.048 m
Mean time between failures (MTBF)	50000 h
Display technology	LED
Built-in microphone	No
Built-in camera	No
Aspect ratio	5:4
