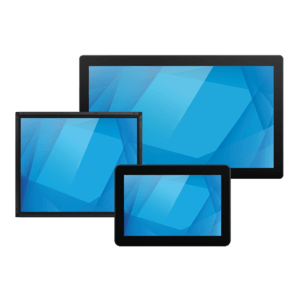

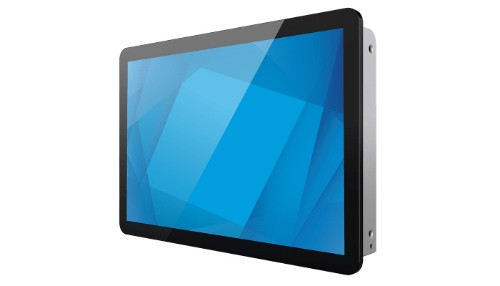

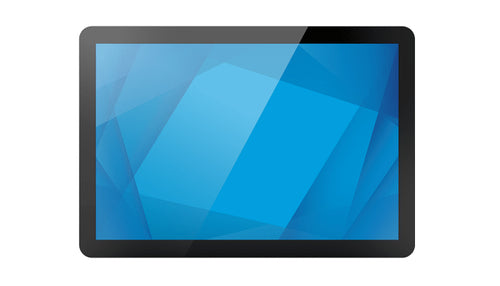

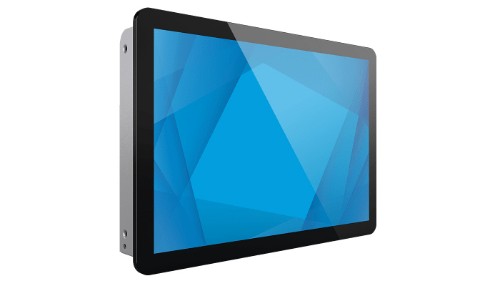

Elo Touch Solutions E354792 POS monitor 25.6 cm (10.1") 1280 x 800 pixels HD TFT-LCD Touchscreen

10", Wide HD LCD WVA, 1000nit LED Backlight, Outdoor Open Frame, Projected Capacitive 5 Touch, Zero-Bezel, HDMI, VGA and Display Port, USB and RS232 touch, Anti-Glare

Key Features

• Built-in Thermal Protection
• Compliant with UL-60950 & IK-09
• IP66 & Nema 4x
• OEM Life Cycle Support
• Ready for 24/7 Use

Description

1099L 10" Outdoor Open Frame Outdoor kiosk ready.
Elo's 10-inch outdoor monitor, boasting 1000 NITs brightness and IK09 vandal-proof rating, ensures 24/7
performance, even in direct sunlight. Readable with polarized sunglasses, it thrives in extended temperatures. Ideal for payment systems, signage, and charging stations, this brilliant, optically bonded weatherproof monitor features edge-to-edge glass for seamless outdoor enclosure integration.

10-inch weather­proof touchscreen that covers you from day to night.
Built to perform outdoors, Elo’s 1099 weatherproof monitor offers IP66 and NEMA 4X when integrated into an enclosure as well as IK09 impact protection. With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital signage display can withstand harsh physical and thermal requirements.

Sunlight readable monitor.
To provide unmitigated performance from day to night, the ambient light sensor automatically adjusts the display’s brightness to optimize power consumption, extend the life of the display and enhance the viewing experience.

Outdoor kiosk solutions.
Elo’s 1099L outdoor monitor enables you to create reliable outdoor kiosks that will capture audiences and differentiate your sunlight readable outdoor display.
- Charging Stations
- Payment & Ticketing
- Vending Machine
- Human Machine Interface
- Order Pickup Lockers

Simplify kiosk deployment and management.
Transform Elo touchscreens into an affordable, scalable, single-architecture media platform with EloView® and the Android Backpack. With simplified content-delivery and remote-management capabilities, managing isolated outdoor kiosks out-of-the-box is simplified.

Powerful computing.
The Elo Backpack delivers a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android- based apps across your interactive experiences. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight to secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.

Take advantage of Elo's feature-rich Android ecosystem.
With easy-to-use development kits, robust management tools, world-class life cycle management, and a comprehensive security model, Elo helps companies deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

Touch thru glass enabled with PCAP.
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or outdoor touchscreen kiosk solutions requiring adherence to specific IP/IK ratings. Whether you need a flush-mounted display or one fully encased in glass, our robust PCAP touchscreen is purpose-built for outdoor durability.

Flexibility for your install.
Elo’s waterproof touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether end users are viewing up close or from a distance, with or without polarized sunglasses, our optically bonded outdoor digital signage display offers what you need while maintaining optimal clarity for the viewing experience.

Specifications

Display
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Display type	TFT-LCD
HD type	HD
Display brightness	1000 cd/m²
Viewing angle, vertical	170°
Viewing angle, horizontal	170°
Touchscreen type	Capacitive
Touchscreen	Yes
Response time	25 ms
Number of colours	16.78 million colours
Native refresh rate	60 Hz
Native aspect ratio	16:9
LED backlight	Yes
Effective viewing area	216.96 x 135.6 mm
Contrast ratio (typical)	800:1
Features
Product colour	Black
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Interface	USB 2.0
Power
Power source type	DC
Power	23 W
Weight & dimensions
Width	256 mm
Weight	2.2 kg
Height	176 mm
Depth	41 mm
Packaging data
Package width	345 mm
Package weight	3.3 kg
Package height	278 mm
Package depth	175 mm
Operational conditions
Storage temperature (T-T)	-30 - 80 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
