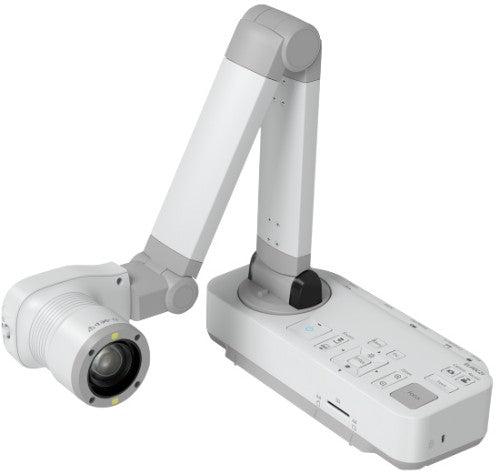

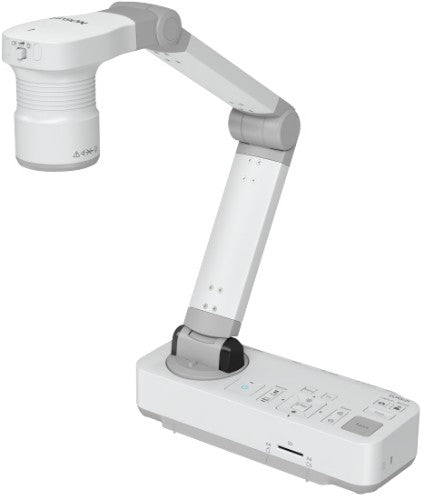

Epson ELPDC21

ELPDC21

Key Features

• Clear, smooth images: Full HD 1080p camera and 30-frames-per-second screen refresh rate
• Capture every detail: 12x optical plus 10x digital zoom; one-touch auto focus and freeze function
• Large A3 capture area: Ideal for projecting maps, detailed diagrams and 3D objects
• Illuminate hard-to-see objects: Built-in LED light
• Added peace of mind: Kensington lock and security bar for theft protection

Description

Education document camera
Bring lessons to life with this user-friendly document camera and share pictures and objects in Full HD on a large screen for the benefit of the whole class. Bursting with a range of clever features and functionality, teachers can create a dynamic environment to enhance student learning. Benefitting from a lightweight and portable design, it is easy to transport between classrooms.

Highlight the finest detail
This document camera is ideal when clear magnification is required, for example when studying historical texts. A 12x optical zoom plus 10x digital zoom and built-in LED light will ensure even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.

Display in Full HD
Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second.

Added flexibility
Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.

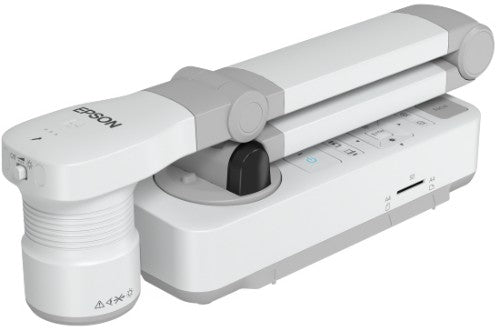

Portable and lightweight
A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.

Specifications

Camera
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Sensor type	CMOS
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1920 x 1080 (HD 1080)
Maximum frame rate	30 fps
Lens system
Auto focus	Yes
Digital zoom	10x
Shooting area (WxD)	297 x 420 mm
Optical zoom	12x
Ports & interfaces
USB connector type	USB Type-B
VGA (D-Sub) output ports	1
VGA (D-Sub) input ports	1
Technical details
Document size (max)	A3
Product colour	White
Cable lock slot	Yes
Built-in microphone	Yes
Cable lock slot type	Kensington
Products per pallet	84 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.68 m
Package width	235 mm
Package weight	4.84 kg
Package height	173 mm
Package depth	445 mm
Country of origin	Philippines
Products per pallet layer (UK)	10 pc(s)
Products per pallet layer	6 pc(s)
Products per pallet (UK)	120 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	2.68 m
Power
Power consumption (typical)	13 W
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Weight & dimensions
Width	367 mm
Depth	122 mm
Height	120 mm
Weight	2.6 kg
Dimensions folded (WxDxH)	270 x 317 x 447 mm
Packaging data
Quantity per pack	1 pc(s)
Package width	235 mm
Package weight	4.84 kg
Package height	173 mm
Package depth	445 mm
Logistics data
Products per pallet	84 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.68 m
Products per pallet layer (UK)	10 pc(s)
Products per pallet layer	6 pc(s)
Products per pallet (UK)	120 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	2.68 m
