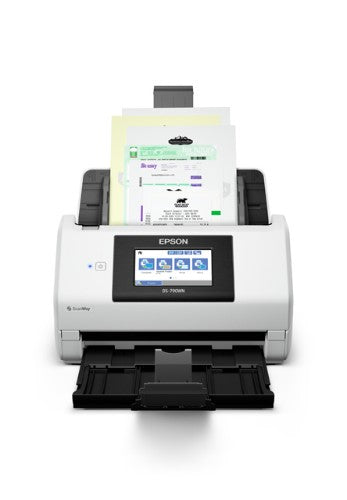

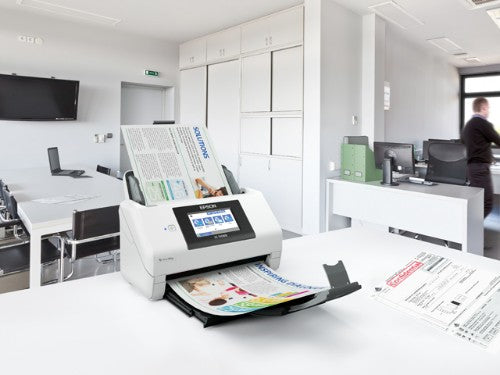

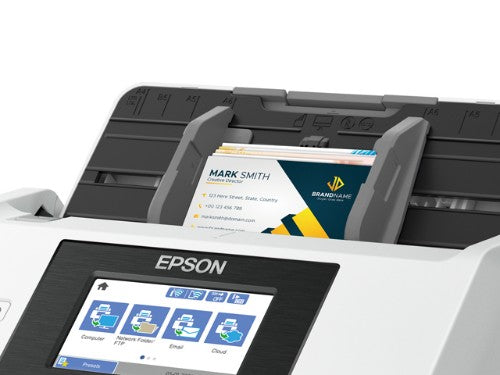

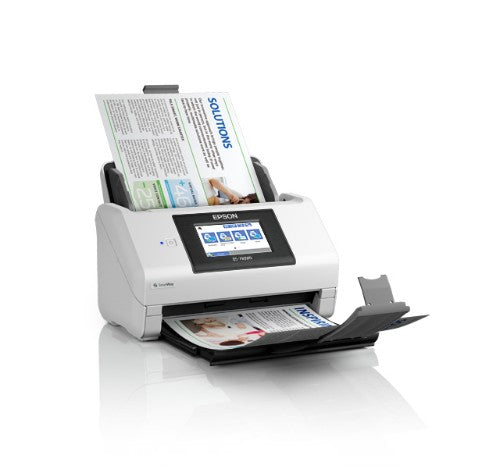

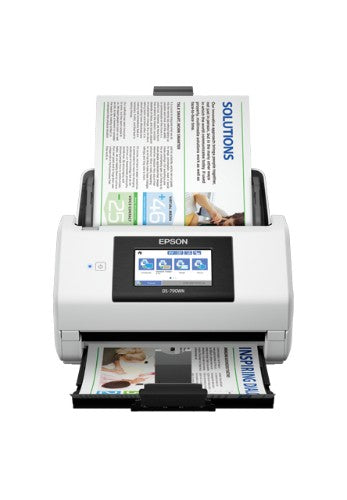

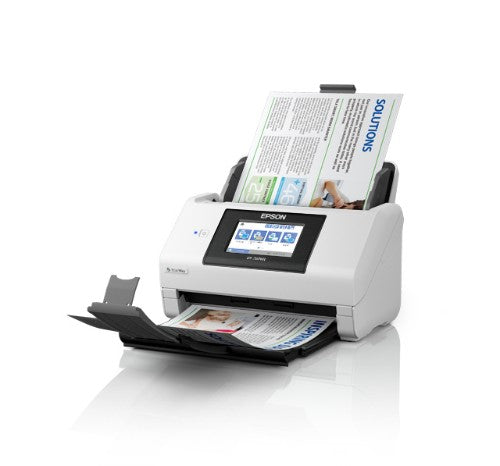

Epson WorkForce DS-790WN

WorkForce DS-790WN

Description

Premium network scanner
Easy-to-use, A4, high-speed, auto-duplex network scanner. Save files directly to a variety of destinations without the need to connect to a PC. System admins can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10.9cm touchscreen allows control panel configuration for increased efficiency.

Advanced authentication
Prevent unauthorised access to the scanner or use of unauthorised features with a range of authentication methods, including ID cards (card reader not included), login credentials or pin codes. For advanced security options make use of Epson's WebConfig and Document Capture Pro Server - Authentication Edition.

ScanWay - standalone scanning
Route scanned documents directly to the right destination using the 10.9cm colour touchscreen without the need to connect to a PC. Scan direct to network and cloud folders, email addresses, or USB memory stick.

Connectivity

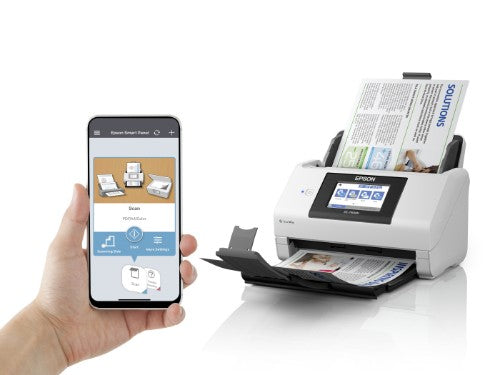

The DS-790WN offers a variety of connectivity options, such as USB 3.2, Wi-Fi, Wi-Fi Direct and Gigabit ethernet. In addition, it supports multiple platforms, including Windows, Mac OS, iOS, Android, Chromebook and Citrix. Scan from a phone or tablet using the Epson Smart Panel app.

Reliability
With a 7000 pages-per-day duty cycle and inbuilt sensors for paper jams, double-feeding, and dirt-on-glass detection, all documents are kept safe and scanned to the highest quality.

Specifications

Scanning
Output greyscale depth	8 bit
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Network folder, USB
Design
Built-in display	Yes
Touchscreen	Yes
Scanner type	Sheet-fed scanner
Display diagonal	10.9 cm (4.3")
Display	LCD
Product colour	Black, White
Colour display	Yes
Performance
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Network folder, USB
Scan drivers	TWAIN, SANE, WIA, ICA, ISIS
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Paper handling
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Envelopes, Plastic Card, Post Card(JPN)
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
Ports & interfaces
USB port	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Software
Bundled software	Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Scan drivers	TWAIN, SANE, WIA, ICA, ISIS
Power
Power consumption (typical)	15 W
Power consumption (standby)	1.5 W
Input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	296 mm
Depth	212 mm
Height	217 mm
Weight	3.7 kg
Package depth	370 mm
Package weight	4.97 kg
Package width	270 mm
Package height	325 mm
Packaging data
Package depth	370 mm
Package weight	4.97 kg
Package width	270 mm
Package height	325 mm
Quantity per pack	1 pc(s)
Products per pallet	48 pc(s)
Packaging content
Quick start guide	Yes
Bundled software	Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Technical details
Products per pallet (UK)	60 pc(s)
Scanner type	Sheet-fed scanner
Image formats supported	BMP, JPEG, TIFF, PNG
Country of origin	Indonesia
Product colour	Black, White
Harmonized System (HS) code	84716070
Display
Touchscreen	Yes
Display diagonal	10.9 cm (4.3")
Display	LCD
Media formats
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
Features
Country of origin	Indonesia
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Image formats supported	BMP, JPEG, TIFF, PNG
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Scanner type	Sheet-fed scanner
Country of origin	Indonesia
Products per pallet	48 pc(s)
Quantity per pack	1 pc(s)
Logistics data
Country of origin	Indonesia
Products per pallet	48 pc(s)
Quantity per pack	1 pc(s)
Products per pallet (UK)	60 pc(s)
Harmonized System (HS) code	84716070
