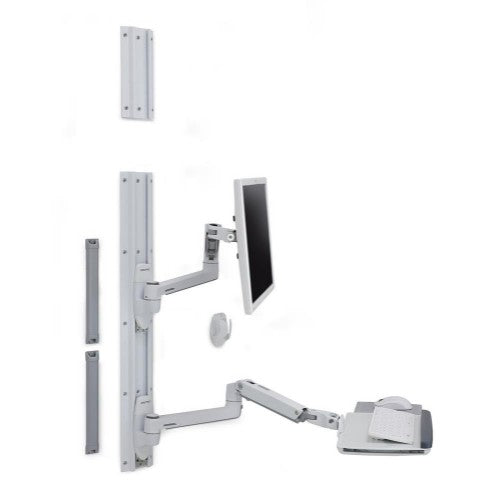

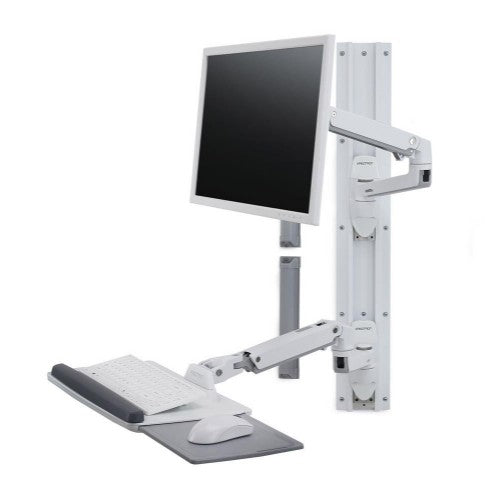

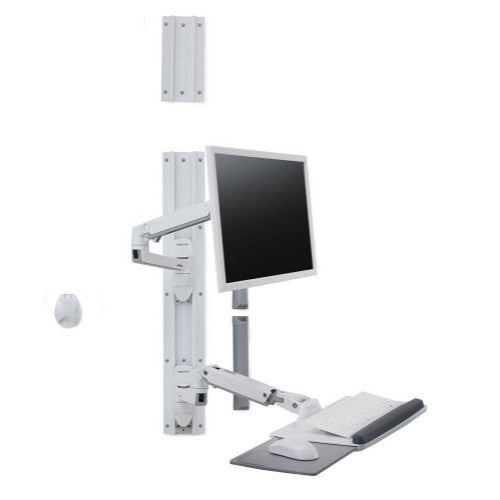

Ergotron LX Wall Mount System 81.3 cm (32") White

LX Wall Mount System (white), Keyboard & Monitor Mount

Key Features

• More motion
• Ergonomic set-up
• Saves space
• Large extension
• Flexible installation
• Quality design

Reasons To Buy

More motion

Offers 13" (33 cm) of height adjustment with full tilt and pan

Ergonomic set-up

Back-tilt keyboard tray protects wrists from pain or injury

Saves space

Folds within inches of the wall when not in use

Large extension

Offers 25" (64 cm) of screen extension and 35" (89 cm) of keyboard tray extension

Flexible installation

Just loosen the screws to change the arm location on the Wall Track

Quality design

Built for thousands of movements by passing 10,000-cycle test

Description

Keyboard & Monitor Mount

Make the most of tight spaces with this wall mount system made with durable polished aluminum construction. This solution accommodates an LCD and keyboard while providing vertical and side-to-side motion for easy repositioning. When not in use, simply fold the keyboard and LCD tight against the wall so it’s out of the way, yet easily accessible. Choose from a variety of CPU holders that meets your unique needs to complete your wall mount system.

Product Benefits

- Articulating arms allow you to effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
- Features full tilt and pan capability and 13" (33 cm) of height adjustment, providing the best ergonomic adjustment
- Extends LCD up to 25" (64 cm), and the keyboard tray extends up to 35" (89 cm) for added flexibility
- Creates a compact workstation that’s ideal for space constrained rooms—simply push your display and keyboard out of the way when not in use
- Keyboard folds to within 3.5" (9 cm) of wall in the storage position, and the LCD arm folds back to a depth of 5.3" (13 cm)
- Ensures wrists remain in a neutral position during data entry with an ergonomic back–tilt keyboard tray to help avoid repetitive stress injuries while increasing comfort and productivity
- Increases visibility for users with bi–focal glasses, as the screen lowers and positions for the best view
- Passes Ergotron’s 10,000–cycle motion test, ensuring years of trouble free height adjustment
- Uses Constant Force technology for easy adjustment

Specifications

Mounting
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Maximum weight capacity	11.3 kg
Maximum screen size	81.3 cm (32")
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 330 mm
Tilt angle range	0 - 75°
Angle of rotation	90°
Pan range	0 - 180°
Design
Product colour	White
Housing material	Aluminium
Technical details
Mounting type	Wall
Adjustable	Yes
Product colour	White
Weight & dimensions
Weight	11.3 kg
Package width	920 mm
Package depth	160 mm
Package height	470 mm
Package weight	13.3 kg
Packaging data
Package width	920 mm
Package depth	160 mm
Package height	470 mm
Package weight	13.3 kg
Other features
Adjustable	Yes
Mounting type	Wall
Logistics data
Harmonized System (HS) code	85299097
