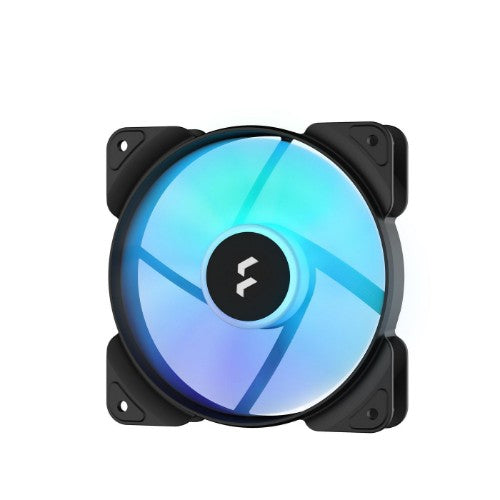

Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm Black 1 pc(s)
€16.17
Unit price
/
Unavailable
Shipping calculated at checkout.
Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm Black 1 pc(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
500-2000 RPM, 13-56 CFM, 10-33.2 dB, RGB LED, 12V, 120x120x25 mm, black, 1 pc
In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Key Features
- Less turbulence thanks to aerodynamic stator struts
- Supports ASUS AURA, Gigabytes Fusion MSI Mystic Light and others
- Trip Wire provides a micro-turbulent layer for enhanced blade efficiency
- Supports chaining to simplify cable management
- Rifle bearings – more efficient than standard sleeve
- Combines aesthetic design and reliable performance
- PWM control with a. wide RPM speed range
- Fits standard 120 mm (105 x 105 hole pattern)
Description
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Rifle bearing |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 33.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Minimum airflow (imperial) | 13 cfm |
| Maximum airflow | 56 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Airflow | 95.1 m³/h |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 90000 h |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Cable length | 0.5 m |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Technical details | |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 33.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Minimum airflow (imperial) | 13 cfm |
| Maximum airflow | 56 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Airflow | 95.1 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power consumption (typical) | 1.68 W |
| Maximum current | 0.37 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 192 mm |
| Package width | 123 mm |
| Package height | 30 mm |
| Package weight | 155 g |
| Weight | 135 g |
| Cable length | 0.5 m |
| Endurance | |
| Mean time between failures (MTBF) | 90000 h |
| Packaging data | |
| Package depth | 192 mm |
| Package width | 123 mm |
| Package height | 30 mm |
| Package weight | 155 g |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
