Fractal Design | SKU:
FD-F-AS1-1209
Sold out

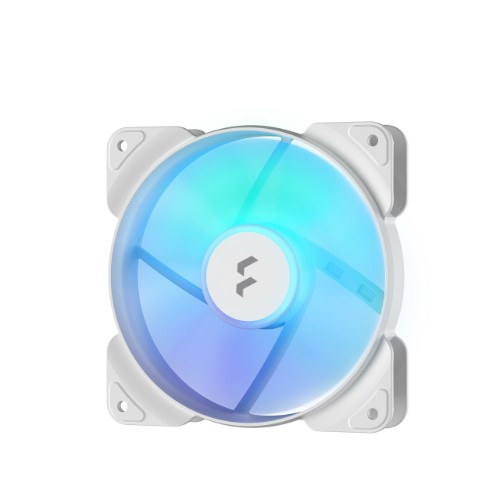

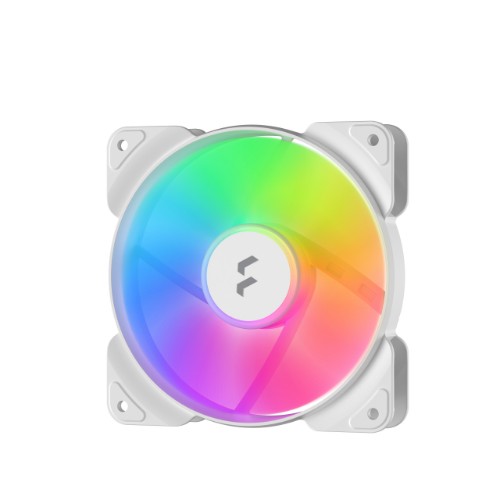

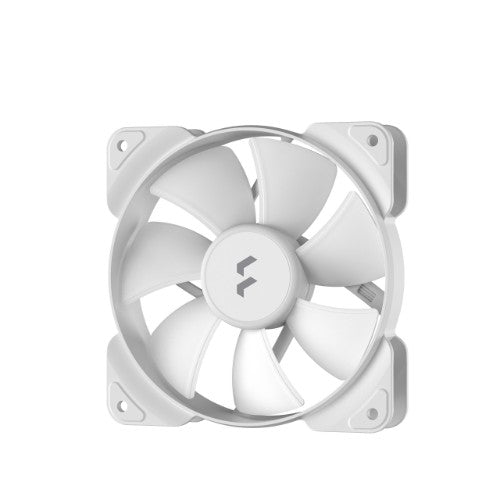

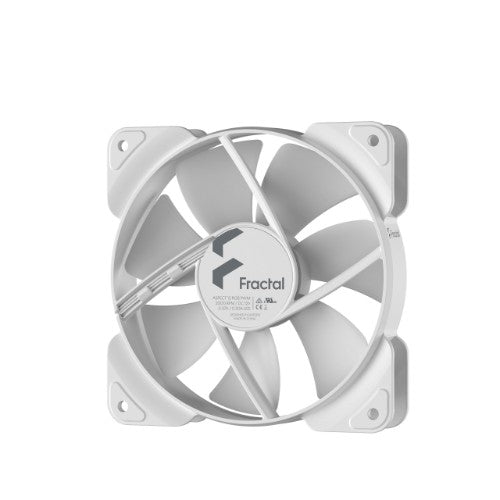

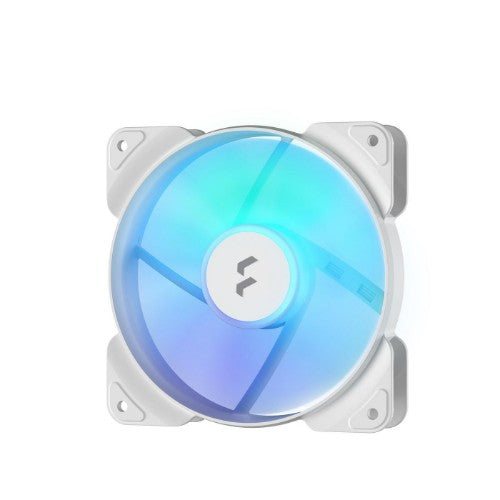

Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm White 1 pc(s)
€17.29
Unit price
/
Unavailable
Shipping calculated at checkout.
Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm White 1 pc(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
120 mm, 4-pin, 500-2000 RPM, ARGB
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Key Features
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- PWM control with a wide RPM speed range
Description
In living color- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Rifle bearing |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 33.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Minimum airflow (imperial) | 13 cfm |
| Maximum airflow | 56 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Airflow | 95.1 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Fan's mean time to failure (MTTF) | 90000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Cable length | 0.5 m |
| Illumination LED | Yes |
| Number of LEDs | 6 |
| Number of fan blades | 7 |
| Technical details | |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 33.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Minimum airflow (imperial) | 13 cfm |
| Maximum airflow | 56 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Airflow | 95.1 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Starting voltage | 7 V |
| LED voltage | 5 V |
| Fan power consumption | 1.68 W |
| Fan voltage | 12 V |
| Fan current | 0.37 A |
| LED power consumption (fan) | 1.5 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 30 mm |
| Package width | 123 mm |
| Package height | 192 mm |
| Fan weight | 135 g |
| Package weight | 155 g |
| Cable length | 0.5 m |
| Packaging data | |
| Package depth | 30 mm |
| Package width | 123 mm |
| Package height | 192 mm |
| Package weight | 155 g |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Other features | |
| LED voltage | 5 V |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
