Fractal Design | SKU:
FD-FAN-DYN-X2-GP18-PWM-BK
Sold out

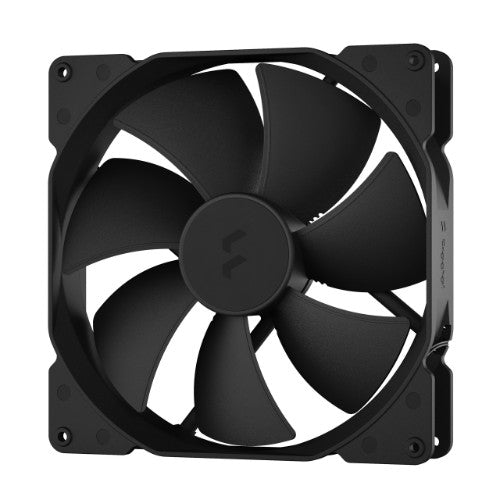

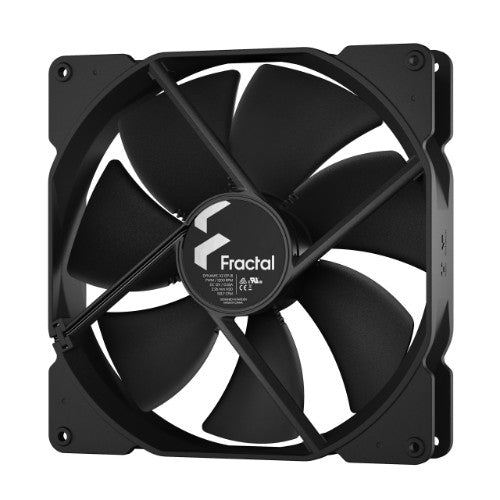

Fractal Design Dynamic X2 GP-18 PWM Computer case Fan 18 cm Black 1 pc(s)
€32.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Fractal Design Dynamic X2 GP-18 PWM Computer case Fan 18 cm Black 1 pc(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
180 mm, 4-pin, 300-1200 RPM, LLS, PWM
Key Features
- Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
- High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
- PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
Description
The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet. Optimized fan geometry - Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario - Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment - Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern High-grade LLS bearing Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability Notched blade design - Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts - Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence - Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profileSpecifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1200 RPM |
| Bearing type | Sleeve bearing |
| Noise level (low speed) | 16 dB |
| Noise level (high speed) | 35.4 dB |
| Type | Fan |
| Fan diameter | 18 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Minimum airflow (imperial) | 44.9 cfm |
| Maximum airflow | 153.7 cfm |
| Minimum air pressure | 0.4 mmH2O |
| Maximum air pressure | 2.26 mmH2O |
| Airflow | 261.29 m³/h |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 90000 h |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 1 m |
| Number of fan blades | 7 |
| Technical details | |
| Noise level (low speed) | 16 dB |
| Noise level (high speed) | 35.4 dB |
| Type | Fan |
| Fan diameter | 18 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Minimum airflow (imperial) | 44.9 cfm |
| Maximum airflow | 153.7 cfm |
| Minimum air pressure | 0.4 mmH2O |
| Maximum air pressure | 2.26 mmH2O |
| Airflow | 261.29 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 1 m |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Voltage | 6 - 12 V |
| Maximum current | 0.35 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 180 x 180 x 38 mm |
| Package depth | 182 mm |
| Package width | 227 mm |
| Package height | 40 mm |
| Fan weight | 499 g |
| Package weight | 548 g |
| Cable length | 1 m |
| Endurance | |
| Mean time between failures (MTBF) | 90000 h |
| Packaging data | |
| Package depth | 182 mm |
| Package width | 227 mm |
| Package height | 40 mm |
| Package weight | 548 g |
| Package type | Hanging box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 12 |
| Package type | Hanging box |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
