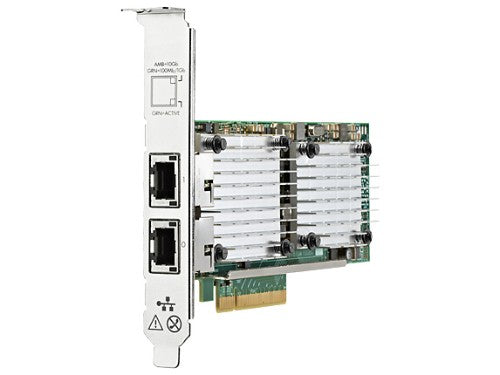

Hewlett Packard Enterprise 10G 2x 530T Fiber 20000 Mbit/s Internal

10Gb 2x 530T, 18W, PCI-e v2.0, x8, Broadcom BCM57810S, Factory Integrated

Description

Are you looking to reduce network congestion and improve cable management at the servers in your HP ProLiant Gen8 environment? The HP Ethernet 10Gb 2-port 530T Adapter is a dual-port 10GBASE-T adapter, featuring the BCM57810S 10 Gb Ethernet solution from Broadcom in a PCIe 2.0 compliant form factor designed for HP ProLiant Gen8 rack and tower servers. The HP 530T Adapter delivers full line-rate performance across all ports with low power consumption, utilizing CAT 6A UTP cabling with distances up to 100 meters.

Providing high performance Ethernet connectivity, it is ideal for virtual server and cloud computing environments. It supports enterprise class features (VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot) and virtualization features (VMware NetQueue and Microsoft VMQ).

The adapter's support for HP Sea of Sensors 3D Technology enhances server performance by reducing energy consumption and expense.

Dual-port 10GBASE-T Ethernet Low Profile Adapter Designed for Increased Network Performance.
The total aggregate, full-duplex throughput of 40Gbps provides the network performance needed to improve response times and alleviate bottlenecks that impact performance of the most demanding workloads. Compatible with 1GbE networks utilizing CAT 6A UTP cabling to support distances up to 100 meters.

Comprehensive stateless offloads that optimize host efficiency and virtual machine density by leaving host CPU availability for other duties.

Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.

Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.

Stateful hardware offload for TCP/IP: TCP Offload Engine (TOE). Optimizes CPU utilization. Backward compatible with existing 1GbE networks utilizing low-cost CAT 6A UTP cabling to support distances up to 100 meters.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.0
Fiber ports quantity	2
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	20000 Mbit/s
Networking
Chipset	Broadcom BCM57810S
Networking standards	IEEE 802.2x,IEEE 802.1Qbb,IEEE 802.1Qaz,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3x
Full duplex	Yes
Maximum data transfer rate	20000 Mbit/s
Technical details
Product colour	Aluminium
Power
Power supply	18 W
Software
Linux operating systems supported	Yes
Indication
LED indicators	Yes
Performance
Server operating systems supported	Windows Server 2008,Windows Server 2012,Windows Small Business Server 2011
Linux operating systems supported	Yes
Design
Product colour	Aluminium
Internal	Yes
LED indicators	Yes
System requirements
Server operating systems supported	Windows Server 2008,Windows Server 2012,Windows Small Business Server 2011
Linux operating systems supported	Yes
Weight & dimensions
Width	63.5 mm
Depth	209.6 mm
Height	248.4 mm
Weight	450 g
Other features
Chipset	Broadcom BCM57810S
Power supply	18 W
