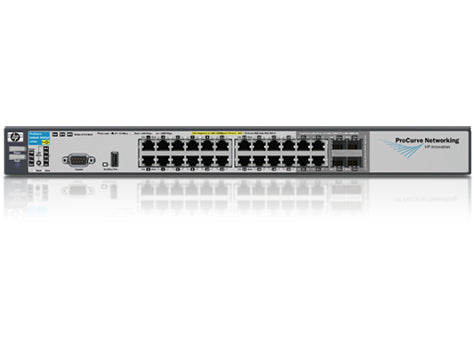

Hewlett Packard Enterprise ProCurve 3500-24G-PoE yl Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

3500-24G-PoE yl Switch

Description

The HP 3500 Switch Series consists of advanced intelligent-edge switches, available in 24-port and 48-port fixed-port models. The foundation for these switches is a purpose-built, programmable HP ProVision ASIC that allows the most demanding networking features, such as quality of service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of Gigabit Ethernet and 10/100 interfaces; integrated PoE+, PoE, and non-PoE options; and versatile 10GbE connectivity (CX4, X2, and SFP+) on Gigabit Ethernet switches, the 3500 Switch Series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance. Features Software-defined networking - OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths Quality of Service (QoS) - Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis - Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers - Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues - Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth. - Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ Management - Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network - RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events - IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications - Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops - Management simplicity: common software features and CLI implementation across all ProVision-based switches (including the zl and yl switches) Connectivity - IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras - IEEE 802.3at Power over Ethernet Plus (PoE+): provides up to 30 W per port to IEEE 802.3 for devices that use PoE/PoE+, such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras - Prestandard PoE support: detects and provides power to prestandard PoE devices - Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services - Auto-MDIX: provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Auto-sensing	Yes
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Routing entries	10000
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Stackable	Yes
Processor frequency	666 MHz
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	4 MB
Built-in processor	Yes
Processor model	PowerPC MPC8540
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	666 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Data transmission
Throughput	75.7 Mpps
Latency (1 Gbps)	3.4 µs
Latency (10 Gbps)	2.1 µs
MAC address table	64000 entries
Switching capacity	101.8 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server,DHCP client
Multicast features
Multicast support	Yes
Memory
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	4 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	98 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	398 W
Power over Ethernet (PoE)	Yes
Operational conditions
Heat dissipation	865 BTU/h
Weight & dimensions
Width	443 mm
Depth	392 mm
Height	44 mm
Weight	6.4 kg
