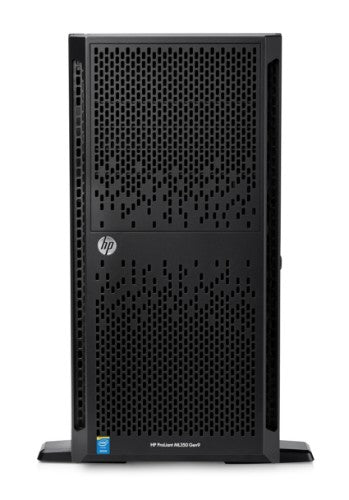

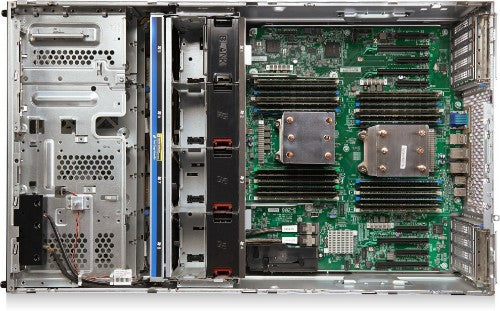

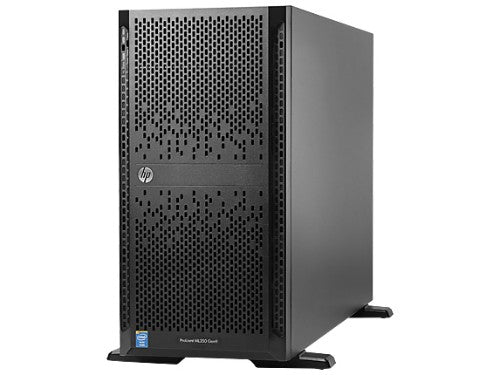

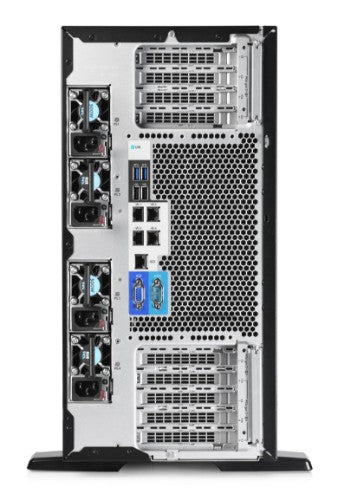

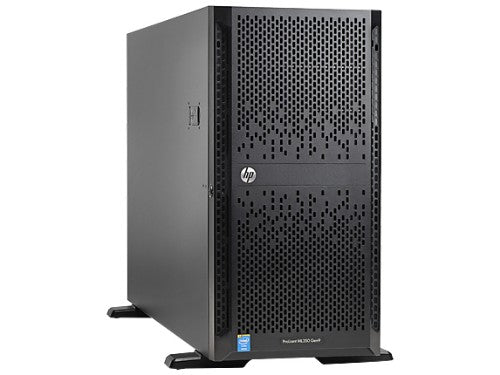

Hewlett Packard Enterprise ProLiant ML350 Gen9 server Tower (5U) Intel® Xeon® E5 v4 2.2 GHz 32 GB DDR4-SDRAM 800 W

2x Intel Xeon E5-2650 v4 (2.2GHz, 30MB), 32GB (2 x 16GB) DDR4, 8 SFF HDD, Smart Array P440ar 2GB, 2x 800W PS

Description

Need to increase your business productivity and improve operations while balancing your employees’ mobility, security and collaboration needs, all within your limited IT budget? HPE ProLiant ML350 Gen9 Server delivers a class-leading combination of performance, expandability, manageability, reliability and serviceability making it the choice for enterprise data centers, expanding SMBs and remote offices of larger businesses. ML350 Gen9 Server leverages the Intel® Xeon® E5-2600 v3 and v4 processors with up to 21% 1 performance gain, plus the latest HPE DDR4 SmartMemory offering up to 23% 2 performance increase. Additional support for 12 Gb/s SAS, embedded 4x1GbE NIC with a broad range of graphics and compute options. Manage your HPE ProLiant Server in any IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease. The ML350 Gen9 Server is ideal for enterprise IT infrastructure to mission critical applications. Features Performance with Unmatched Capacity and Reliability - The HPE ProLiant ML350 Gen9 Server supports up to two Intel® Xeon® E5-2600 v3 or v4 processors offering improved performance. - HPE Smart Array Controllers are designed to increase 12 Gb/s performance, data availability and storage capacity while providing the flexibility in choice of solutions that are simple to manage. - Up to (24) DIMM slots to support HPE DDR4 SmartMemory 2400MHz, helping to prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency. Availability, Expandability and Serviceability - A Winning Combination - The HPE ProLiant ML350 Gen9 Server offers expandability with greater capacity with (8) to (24) LFF, (8) to (48) SFF drive options and increased I/O expansion. - Large expansion capacity with (9) PCIe expansion slots, (8) USB ports, 5U Rack conversion, and Power Supply options. - Embedded 4x1Gbe and choice of HPE PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs. - Wider GPU support (4) to boost performance in graphic and VDI applications for financial services, education, scientific research, and medical imaging. - Worldwide availability, service and support with a complete range of Foundation Care offerings from installation to extended support. Agile Infrastructure Management for Essential Administration - The HPE ProLiant ML350 Gen9 Server provides powerful converged management capabilities for the infrastructure lifecycle with embedded server management for provisioning, updating and diagnostic support with HPE iLO. - Configure in Unified Extensible Firmware Interface (UEFI) boot mode to provision local and remote servers with Intelligent Provisioning and Scripting Toolkits. - Online personalized dashboard for converged infrastructure health monitoring and support management with HPE Insight Online. - Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Energy Efficiency by Design - The HPE ProLiant ML350 Gen9 Server offers ENERGY STAR® qualified server configurations illustrate the HPE continued commitment to helping customers conserve energy and save money. - Next generation high efficiency redundant HPE Flexible Slot Power Supplies provide up to 94% efficiency (Platinum Plus) and support for HPE’s Power Discovery Services. - Improved ambient temperature standard with ASHRAE A3 and A4 3 helps you reduce cooling costs.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	105 W
Tcase	80 °C
Supported instruction sets	AVX 2.0
Stepping	M0
Scalability	2S
Processor threads	24
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2N3
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	76.8 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	1536 GB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	30 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E5-2600 v4
Processor frequency	2.2 GHz
Processor boost frequency	2.9 GHz
Number of processors installed	2
Processor model	E5-2650V4
System bus rate	9.6 GT/s
Processor socket	LGA 2011-v3
Processor cores	12
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Maximum number of SMP processors	2
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	24
Memory clock speed	2400 MHz
Maximum internal memory	768 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
RAID support	Yes
Optical drive type	No
Number of HDDs supported	8
Maximum storage capacity	96 TB
HDD size	2.5"
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Network
LAN controller	HP 331i
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	4
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Tower (5U)
Graphics
Graphics card family	Matrox
Graphics card	G200
Performance
Compatible operating systems	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix XenServer
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix XenServer
Operating system installed	No
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor ARK ID	91767
CPU configuration (max)	2
Power
Number of redundant power supplies installed	2
Redundant power supply (RPS) support	Yes
Power supply	800 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	2
Chassis type	Tower (5U)
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	219 mm
Weight	30 kg
Height	464 mm
Depth	769 mm
Other features
Graphics card family	Matrox
Graphics card	G200
CPU configuration (max)	2
