Honeywell | SKU:
MK5145-31C41-EU
21% off

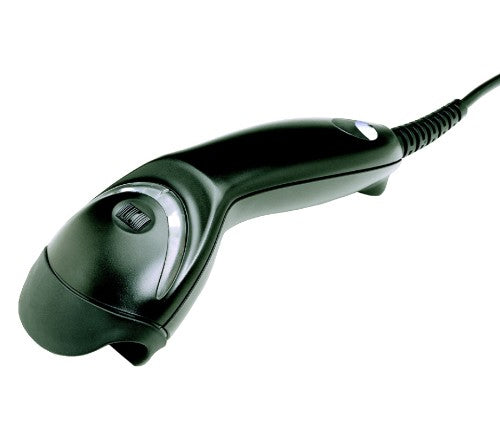

Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black
€92.70
€117.71
Unit price
/
Unavailable
Shipping calculated at checkout.
Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

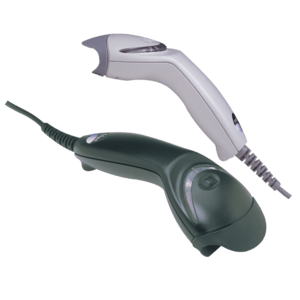

MS5145 Eclipse, black
CodeGate: Ideal for menu scanning applications
CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
Description
The MS5145 Eclipse is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.CodeGate: Ideal for menu scanning applications
CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Working distance | 150 cm |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 52° |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 42 reads/s |
| Pitch reading angle | 0 - 68° |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2.1 m |
| Standard interfaces | RS-232 |
| Performance | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Power | |
| Power consumption | 675 mA |
| Power source type | DC |
| Power consumption (typical) | 0.672 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Weight | 100 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
