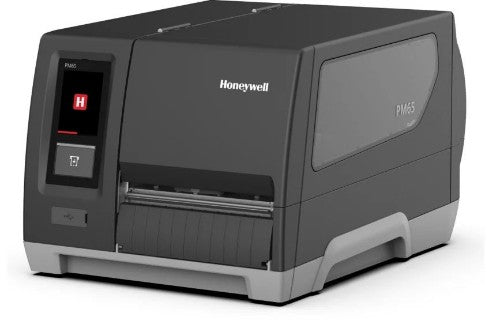

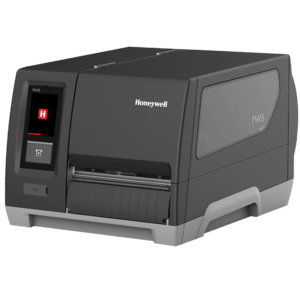

Honeywell PM65 label printer Thermal transfer 203 x 203 DPI 300 mm/sec Wired Ethernet LAN

PM65A Thermal Transfer, 203 DPI, 6-inch Full Touch Display, 512MB Flash memory, 256MB SDRAM, Ethernet, Parallel, Rewinder + Label Taken Sensor, Fixed Hanger

Description

The Honeywell PM45 and PM65 series industrial printers are designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Enterprises today are facing increasing production flexibility, inventory turnover, and cost control challenges. The PM45 and PM65 industrial printers offer high-precision and high-volume printing along with remote configuration and diagnostics functionalities that increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Efficiency and reliability of printing operations are essential for successful workflows. Honeywell Printer Edge provides centralized management and real-time monitoring of your printer network and may help reduce printer downtime and improve the speed and accuracy of printer operations. With effortless integration, a user-friendly interface, enhanced security, and a single software toolkit, you can keep your operations running smoothly while helping reduce costs and maximize productivity.

The PM45 and PM65 support printer remote control, so you can see and control the printers from a remote computer and provide real-time diagnosis and technical support. Print Set MC application enables you to quickly connect and configure the printers from your preferred Android or iOS device, and optional Honeywell Operational Intelligence enables the printers with the capability of remote management for issues diagnostics and output performance tracking.

The PM45 printer can deliver print registration of up to +/-0.5 mm, ensuring high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. The PM45 and PM65 include WWAN connectivity to enable deployment with minimal limitation from site network topology. These printers are also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

The PM45 and PM65 can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. The PM45 and PM65 printers are easy replacements for existing Honeywell or mixed printers. Rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	16.7 cm
Printing
Minimum print length	4.8 m
Colour	No
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	16.7 cm
Print technology	Thermal transfer
Display
Display diagonal	15.2 cm (6")
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	Yes
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Maximum roll diameter	21.3 cm
Maximum label width	17.8 cm
Ports & interfaces
USB 2.0 ports quantity	2
RS-232 ports	1
Parallel ports quantity	1
Connectivity technology	Wired
Bluetooth	No
Wi-Fi	No
Ethernet LAN	Yes
USB port	Yes
Performance
Mobile operating systems supported	Android, iOS
Built-in barcodes	1D, 2D
Internal memory	256 MB
Image formats supported	BMP, GIF, PCX, PNG
Flash memory	512 MB
Certification	RoHS Compliant, CE (EN55032 Class B), FCC Class B, Energy Star 3.0
Page description languages	DPL, IPL, PDF, XML, ZPL II
Design
Display diagonal	15.2 cm (6")
Display	LCD
Product colour	Black
Control type	Touch
Certification	RoHS Compliant, CE (EN55032 Class B), FCC Class B, Energy Star 3.0
Power
Power consumption (standby)	9.6 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Windows operating systems supported	Yes
Product colour	Black
Built-in barcodes	1D, 2D
Maximum label width	17.8 cm
Image formats supported	BMP, GIF, PCX, PNG
Certificates
Certification	RoHS Compliant, CE (EN55032 Class B), FCC Class B, Energy Star 3.0
System requirements
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	350 mm
Depth	484 mm
Height	292 mm
Weight	13.7 kg
