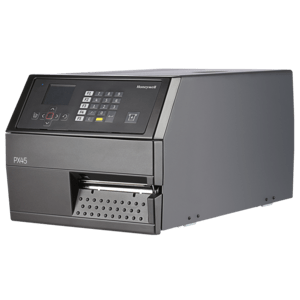

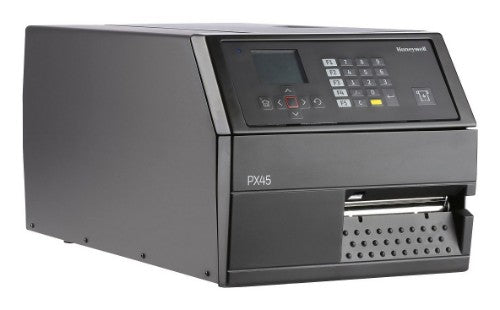

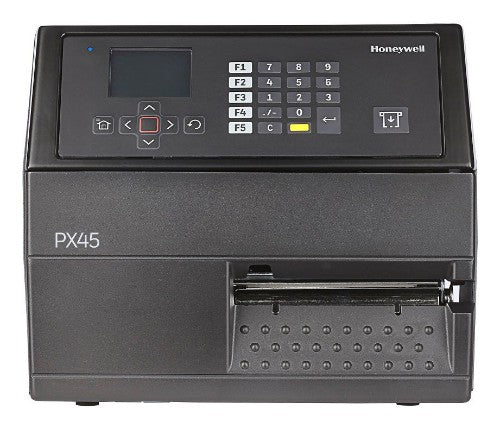

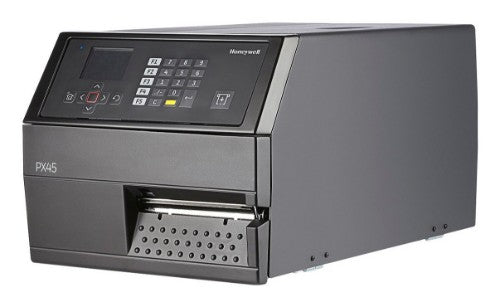

Honeywell PX45A label printer Thermal transfer 203 x 203 DPI 300 mm/sec Wired Ethernet LAN

203DPI, 300mm/s, Ethernet, RS232, USB, 256/512 MB, LCD

Description

The rugged, all-metal PX45 and PX65 printers deliver outstanding performance – up to 12 inches per second from first label to last – and incorporate features that reduce downtime and minimize maintenance costs. Both versions are available with 203 or 300 dpi resolution, and the PX45 also offers 406 dpi, for precision labeling without any loss of speed. This is ideal for compliance labeling applications with variable data requiring immediate results.
The PX45 and PX65 printers’ smart design features support increased productivity in demanding environments. As Smart Printers, they can host stand-alone applications, developed through the Fingerprint and C# programming languages, helping reduce errors and streamline operational processes.
The printers’ device management and diagnostic capabilities – provided in web-based PrintSet 5 Configuration Management tool, configuration tool PrintSet MC for mobile devices and cloud-based Operational Intelligence– reduce downtime and simplify deployment. Replacing printheads is fast and easy, thanks to the magnetic QuickMount™ printhead design. The PX45 and PX65 printers are co-engineered and tested with Honeywell labels and other media products, optimizing performance when used with genuine Honeywell media.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	11 cm
Printing
Colour	No
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	11 cm
Print technology	Thermal transfer
Number of printable dots	8 dot
Printing characters	2D barcode, Barcode, Graphic, Text
Display
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	Yes
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Media thickness	0.061 - 0.254 mm
Maximum roll diameter	21.3 cm
Maximum label width	11 cm
Core diameter	7.62 cm
Ports & interfaces
USB 2.0 ports quantity	2
RS-232 ports	1
Connectivity technology	Wired
Wi-Fi	No
Ethernet LAN	Yes
USB port	Yes
Performance
Built-in barcodes	1D, 2D
Internal memory	256 MB
Flash memory	512 MB
Page description languages	DP, DPL, IPL, XML, ZPL II
Design
Display	LCD
Product colour	Black
Control type	Touch
Built-in display	Yes
Power
Power consumption (standby)	5 W
Technical details
Product colour	Black
Built-in barcodes	1D, 2D
Maximum label width	11 cm
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	275 mm
Depth	482 mm
Height	238 mm
Weight	12.6 kg
