HP Z6 G5 A AMD Ryzen Threadripper PRO PRO 7945WX 64 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX 4000 Ada Windows 11 Pro Tower Workstation AI Workstation Black

Z6 G5 A Workstation, Windows 11 Pro, AMD Ryzen™ Threadripper™ PRO, 64GB RAM, 2TB SSD, NVIDIA RTX™ 4000 Ada, Black, AI Workstation

Key Features

• AMD Ryzen™ Threadripper™ PRO 7945WX (up to 5.3 GHz max boost clock, 64 MB L3 cache, 12 cores, 24 threads)
• Windows 11 Pro
• NVIDIA RTX™ 4000 Ada Generation (20 GB GDDR6 dedicated)
• 64 GB DDR5-5600 MT/s ECC (2 x 32 GB), 2 TB PCIe Gen4 NVMe™ TLC SSD

Reasons To Buy

AMD® Ryzen™ processor

Bring your ideas to life quickly and effectively with the latest AMD® Ryzen™ processors.

Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Ultra Fast Memory Configurations

Accelerate your workflow. Power through memory-intensive workloads with fast visual effects, compositing, and rendering performance

Create, render, process—all at once

Tear through rendering, simulations or 3D modeling. The system design packs up to 96 cores in a single workstation CPU1 so there’s room for up to three high-end GPUs^[1] and eight memory channels.^[2] And, do it all with efficient performance per watt.

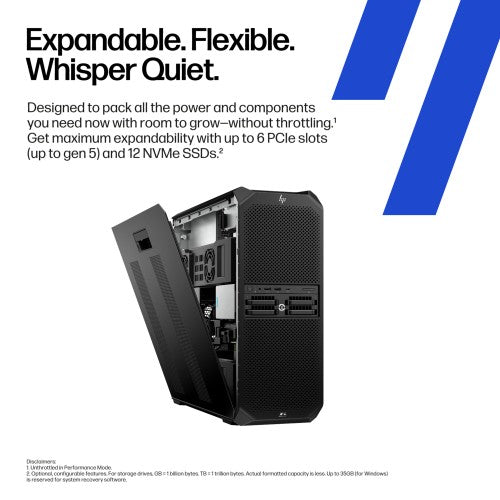

Expandable. Flexible. Whisper Quiet

Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory configurations. Conquer intense projects with a device designed to run quiet and cool.

Your AI powerhouse, in-house

Accelerate AI development and inferencing with space for up to 3 NVIDIA RTX™ GPUs^[2], delivering incredible TOPS for advanced AI workflows. Process proprietary data securely on a local workstation for fast insights.

Designed with the planet in mind

At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.

Description

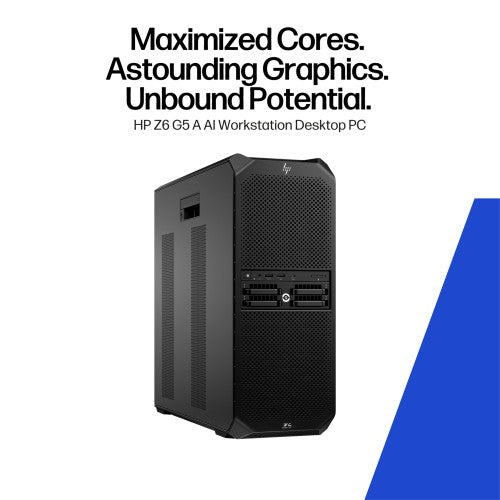

Maximized Cores. Astounding Graphics. Unbound Potential
The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen™ Threadripper™ PRO CPU,^[1] combines an astounding number of cores in a single CPU with up to 3 GPUs.^[2] Create and render at once on intensive projects.

Specifications

Processor
Processor generation	AMD Ryzen Threadripper PRO 7000 WX-Series
Processor cache type	L3
Processor cache	64 MB
Processor frequency	4.7 GHz
Processor model	PRO 7945WX
Number of processors installed	1
Processor manufacturer	AMD
Processor boost frequency	5.3 GHz
Processor threads	24
Processor cores	12
Processor family	AMD Ryzen Threadripper PRO
Memory
ECC	Yes
Memory layout (slots x size)	2 x 32 GB
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory module type	DIMM
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	2 TB
Number of SSDs installed	1
Total storage capacity	2 TB
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	20 GB
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX 4000 Ada
Discrete graphics memory type	GDDR6
On-board graphics card model	Not available
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
Performance
Market positioning	Performance
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3205-CG
Harmonized System (HS) code	8471500000
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	14
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Line-out	Yes
Line-in	Yes
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Expansion slots
PCI Express x4 slots	2
Number of 3.5" bays	2
PCI Express x4 (Gen 4.x) slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	4
Power
Power supply	1450 W
Technical details
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Tower
Number of 3.5" bays	2
Cable lock slot	Yes
UNSPSC-code	43211515
Memory module type	DIMM
Sustainable technologies and materials	40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% efficiency; Ocean-bound plastic in system and CPU fans
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_8827218_en-US-1.pdf
HP GTIN (EAN/UPC)	198122910106
HP GTIN (EAN/UPC) with options	(AKC) 198122373420; (AKD) 198122373413; (BCM) 198122373437
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Number of 3.5" bays	2
Cable lock slot	Yes
Colour name	Black
Country of origin	Czech Republic
Introduction year	2024
Software
Pre-installed software	HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager
Operating system installed	Windows 11 Pro
Display
Display included	No
Brand-specific features
HP Support Assistant	Yes
HP Security tools	Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives
HP Management tools	HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
HP Software provided	HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager
HP segment	Business
HP Artificial Intelligence	AI Workstation
HP GTIN (EAN/UPC)	198122910106
HP GTIN (EAN/UPC) with options	(AKC) 198122373420; (AKD) 198122373413; (BCM) 198122373437
Audio
Audio chip	Realtek ALC3205-CG
Sustainability
Total carbon footprint (kg of CO2e)	630
Sustainable technologies and materials	40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% efficiency; Ocean-bound plastic in system and CPU fans
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO

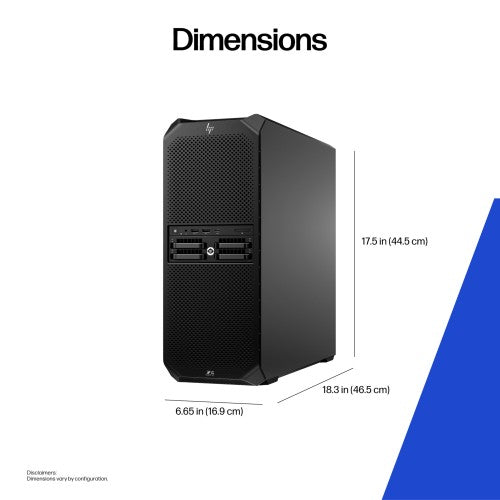

Weight & dimensions
Package width	313 mm
Package depth	593 mm
Package height	610 mm
Width	169 mm
Depth	465 mm
Height	169 mm
Package weight	18.3 kg
Weight	13.2 kg
Packaging data
Package width	313 mm
Package depth	593 mm
Package height	610 mm
Package weight	18.3 kg
Packaging content
Numeric keypad	No
Mouse included	Yes
Keyboard included	Yes
Input device model	HP Wired Desktop 128 Laser Mouse
Display included	No
Keyboard connectivity	Wired
Certificates
Low halogen	Yes
Keyboard
Keyboard type	USB
Keyboard connectivity	Wired
Logistics data
Harmonized System (HS) code	8471500000
Supplier features
Manufacturer warranty	1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Carbon footprint
Total carbon footprint (kg of CO2e)	630
Total carbon emissions, w/o use phase (kg of CO2e)	315
Carbon emissions, manufacturing (kg of CO2e)	311
Carbon emissions, logistics (kg of CO2e)	6
Carbon emissions, end-of-life (kg of CO2e)	2
Features
Country of origin	Czech Republic
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
UNSPSC-code	43211515
Memory module type	DIMM
Keyboard type	USB
Country of origin	Czech Republic
Harmonized System (HS) code	8471500000
Manufacturer warranty	1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
