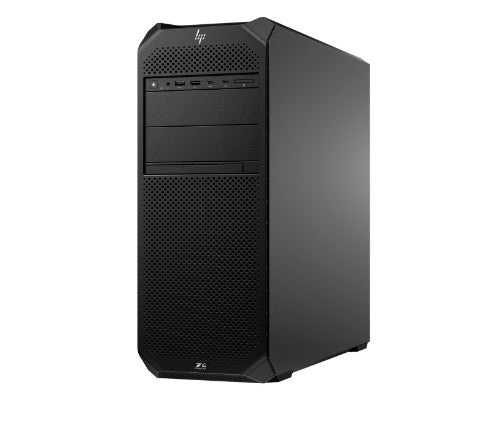

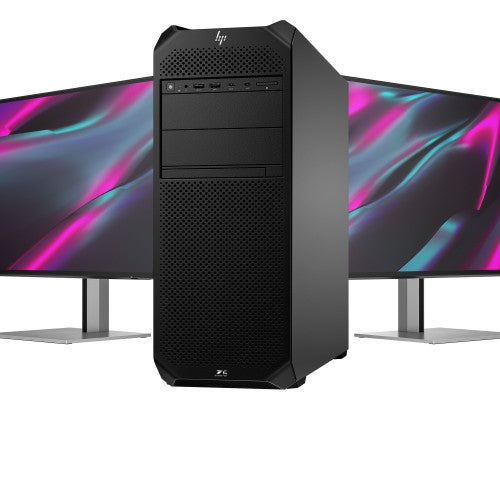

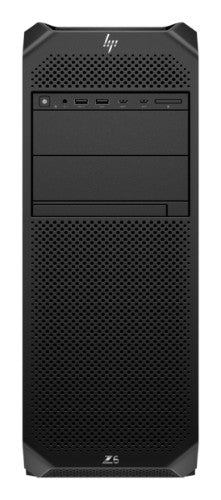

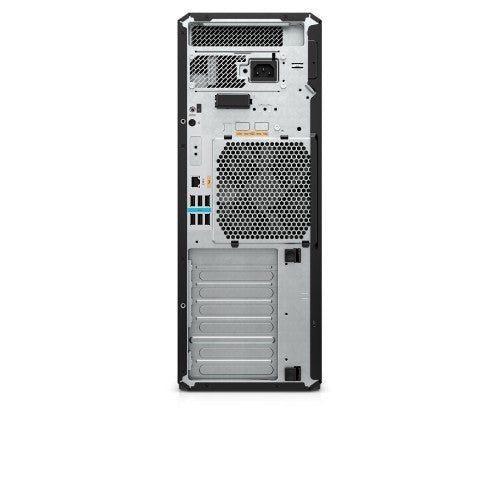

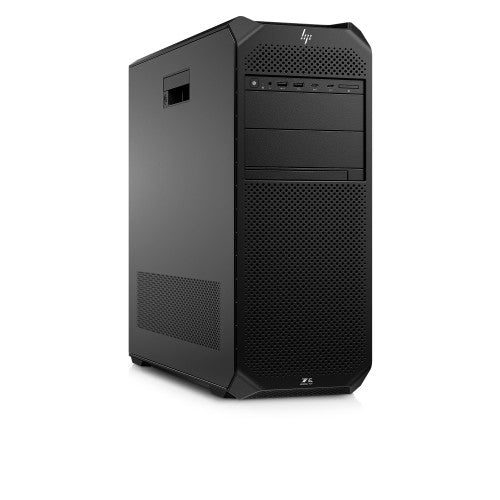

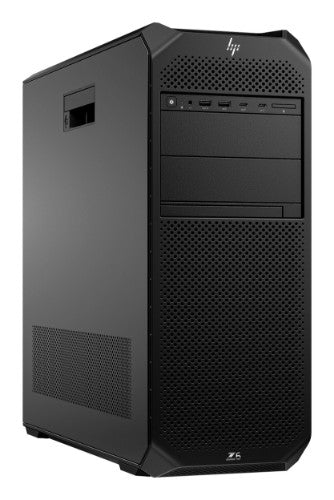

HP Z6 G5 Intel Xeon w7 w7-3545 64 GB DDR5-SDRAM 2 TB SSD Windows 11 Pro Tower Workstation AI Workstation Black

Z6 G5 Tower Workstation Wolf Pro Security Edition, Windows 11 Pro, Intel Xeon w7, 64GB RAM, 2TB SSD, AI Workstation

Key Features

• Intel Xeon W7-3545 (up to 4.8 GHz with Intel Turbo Boost Technology, 67.5 MB L3 cache, 24 cores, 48 threads)
• Windows 11 Pro
• 64 GB DDR5-4800 MT/s ECC (2 x 32 GB), 2 TB HP Z Turbo Drive PCIe NVMe™ TLC M.2 SSD

Reasons To Buy

HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.^[8]

Intel® Xeon® W processor

Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.^[2]

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Professional Grade Graphics

Tackle 4K visual effects, advanced simulation, and machine learning projects

Ultra Fast Memory Configurations

Accelerate your workflow. Power through memory-intensive workloads with fast machine learning, visual effects, and simulation performance.

Remarkable performance. Extraordinary expandability.

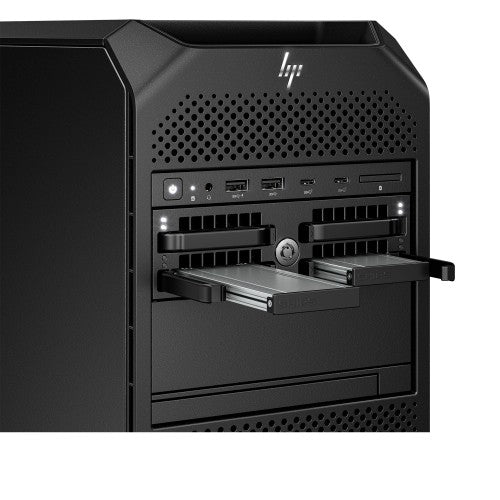

Tackle graphics-intensive workflows with up to 3 high-end GPUs^[1], an Intel® Xeon® W CPU with up to 36 cores^[2], and 1 TB DDR5 RAM3. Easily expand as work evolves with with tool-less access, 6 PCIe slots, 4 front accessible NVMe bays^[3].

Engineered to stay cool and quiet.

Push your desktop workstation without disruptive noise. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors. Precisely placed vents and ducts streamline airflow and heat removal.

Ignite AI innovation

Accelerate AI development and inferencing with the Z6 AI workstation, with up to 3 NVIDIA RTX™ 6000 Ada Generation GPUs^[4] delivering up to 4,371 AI TOPS for advanced AI. Process proprietary data securely on a local workstation to gain insights faster.

Designed with the planet in mind.

At HP, we care about the impact our products have on our people, communities, and planet. That’s why the Z6 contains 40% recycled plastics,^[5] 10% recycled metal, 100% sustainably sourced outer box packaging, and is EPEAT® Gold Climate+ registered.^[6,7]

Description

Unleash extreme graphics performance
Accelerate AI and graphics-heavy projects—from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.

Specifications

Processor
Processor cache type	L3
Processor cache	67.5 MB
Processor frequency	2.7 GHz
Processor model	w7-3545
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	48
Processor cores	24
Processor family	Intel Xeon w7
Performance cores	24
Efficient cores	0
Processor base power	310 W
Maximum turbo power	372 W
Memory
Non-ECC	Yes
ECC	No
Memory layout (slots x size)	2 x 32 GB
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory module type	DIMM
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express
SSD capacity	2 TB
Number of SSDs installed	1
Total storage capacity	2 TB
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available
Performance
Market positioning	Performance
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel W790
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3205-CG
Harmonized System (HS) code	8471500000
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	2
Expansion slots
PCI Express x16 (Gen 3.x) slots	1
Number of 3.5" bays	4
PCI Express x4 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Power
Power supply	1450 W
Technical details
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	Yes
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 3.5" bays	4
Cable lock slot	Yes
Motherboard chipset	Intel W790
UNSPSC-code	43211515
Memory module type	DIMM
Sustainable technologies and materials	Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_5990438_en-US-1.pdf
HP GTIN (EAN/UPC)	198990829692
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 3.5" bays	4
Cable lock slot	Yes
Country of origin	Czech Republic
Introduction year	2025
Software
Bundled software	HP Wolf Pro Security Edition (1 year)
Pre-installed software	HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager
Operating system installed	Windows 11 Pro
Display
Display included	No
Processor special features
Intel® Turbo Boost Technology	Yes
Brand-specific features
HP Support Assistant	Yes
HP Security tools	Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives
HP Management tools	HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
HP Software provided	HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack Manager
HP segment	Business
HP Artificial Intelligence	AI Workstation
HP GTIN (EAN/UPC)	198990829692
Audio
Audio chip	Realtek ALC3205-CG
Sustainability
Total carbon footprint (kg of CO2e)	630
Sustainable technologies and materials	Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO
Weight & dimensions
Package width	313 mm
Package depth	610 mm
Package height	593 mm
Width	168.9 mm
Depth	464.8 mm
Height	168.9 mm
Package weight	17.2 kg
Weight	12.8 kg
Packaging data
Package width	313 mm
Package depth	610 mm
Package height	593 mm
Package weight	17.2 kg
Packaging content
Numeric keypad	No
Mouse included	Yes
Keyboard included	Yes
Input device model	HP Wired 320M Mouse
Mouse connectivity	Wired
Bundled software	HP Wolf Pro Security Edition (1 year)
Display included	No
Keyboard connectivity	Wired
Certificates
Low halogen	Yes
Keyboard
Keyboard type	USB
Keyboard connectivity	Wired
Logistics data
Harmonized System (HS) code	8471500000
Supplier features
Manufacturer warranty	1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Support service included	HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Carbon footprint
Total carbon footprint (kg of CO2e)	630
Total carbon emissions, w/o use phase (kg of CO2e)	315
Carbon emissions, manufacturing (kg of CO2e)	311
Carbon emissions, logistics (kg of CO2e)	6
Carbon emissions, end-of-life (kg of CO2e)	2
Features
Country of origin	Czech Republic
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	No
Processor manufacturer	Intel
UNSPSC-code	43211515
Memory module type	DIMM
Keyboard type	USB
Country of origin	Czech Republic
Harmonized System (HS) code	8471500000
Manufacturer warranty	1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Support service included	HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
