HPE | SKU:
652503R-B21
Sold out

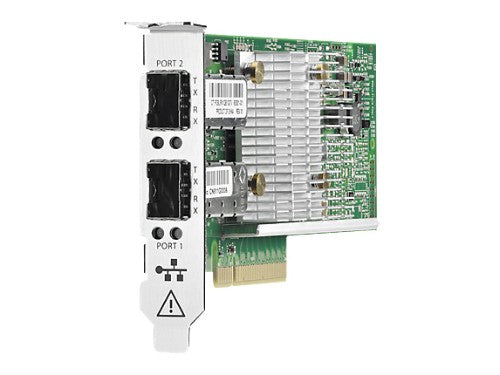

HPE 10Gb 2x 530SFP+ Internal Fiber 20000 Mbit/s
€903.73
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE 10Gb 2x 530SFP+ Internal Fiber 20000 Mbit/s is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
10Gb 2x 530SFP+, 9W, PCI-e v2.0, x8, Broadcom BCM57810S, Refurbished
The HP 530SFP supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Single-chip, dual-port 10Gb Ethernet low profile adapter designed for maximum network performance
Ethernet transfer rate of 20 Gbps full duplex per port (40 Gbps aggregate) improves response times and alleviates bottlenecks in next generation data centers
Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU
Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Ready for SR-IOV virtualization.
Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores
TCP/IP Offload Engine (TOE) frees server CPU for other operations
Description
The HP 530SFP+ is a dual-port 10Gb Ethernet adapter featuring the next generation BCM57810S single-chip solution from Broadcom in a PCIe 2.0 compliant form factor designed for select HP ProLiant Gen8 and Gen7 ML/DL/SL servers. Leveraging Broadcom’s market-proven architecture and software, the HP 530SFP+ delivers full line-rate performance across all ports with low power consumption.The HP 530SFP supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Single-chip, dual-port 10Gb Ethernet low profile adapter designed for maximum network performance
Ethernet transfer rate of 20 Gbps full duplex per port (40 Gbps aggregate) improves response times and alleviates bottlenecks in next generation data centers
Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU
Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Ready for SR-IOV virtualization.
Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores
TCP/IP Offload Engine (TOE) frees server CPU for other operations
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 20000 Mbit/s |
| Network | |
| Chipset | Broadcom BCM57810S |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Full duplex | Yes |
| Maximum data transfer rate | 20000 Mbit/s |
| Technical details | |
| Compatible products | ProLiant |
| Product colour | Aluminium |
| Power | |
| Power supply | 9 W |
| Design | |
| Compatible products | ProLiant |
| Product colour | Aluminium |
| Chipset | Broadcom BCM57810S |
| Internal | Yes |
| Software | |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 57.2 mm |
| Depth | 241.3 mm |
| Height | 190.5 mm |
| Weight | 450 g |
| Performance | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 |
| Compatible products | ProLiant |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Broadcom BCM57810S |
| Power supply | 9 W |
