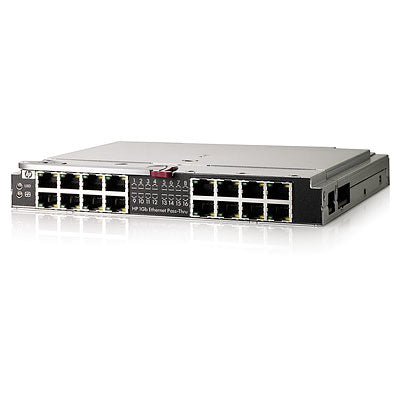

HPE 1GB Ethernet Pass-Thru Mod network switch module Fast Ethernet, Gigabit Ethernet

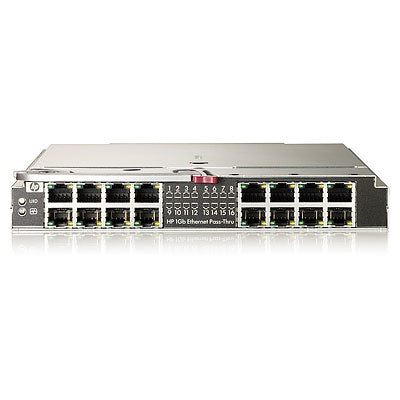

HP 1GB Ethernet Pass-Thru Module for c-Class BladeSystem

Description

The HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HP 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1:1 non-switched, non-blocking path between the server and the network. Designed to fit into a single I/O bay of the c-Class enclosure, the Ethernet Pass-Thru Module should be installed in pairs to provide redundant uplink paths to your network.

- Performance.
- Full Duplex 1G Ethernet only. Sixteen RJ-45 ports in a single bay form factor. 1:1 non blocking architecture. Wire speed.
- Management.
- No need for LAN management inside the enclosure. Power, temperature and status can be monitored by the Onboard Administrator. I2C communications support for iLO.
- Options.
- The Ethernet Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two. 406740-B21 Qty.1 HP 1Gb Ethernet Pass-Through Module for c-Class BladeSystem. UE477E. Qty.1 HP CarePack Enhanced 3-year Warranty. UE603E. Qty.1 BladeSystem Enhanced Network Configuration Service.

Specifications

Network
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ports & interfaces
Ports quantity	16
Ethernet LAN (RJ-45) ports	16
Performance
Compatibility	HP BladeSystem c-Class
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 80%
Weight & dimensions
Weight	299 g
Technical details
Ports quantity	16
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Compatibility	HP BladeSystem c-Class
Ergonomics
Connectivity LEDs	Yes
Indication
Connectivity LEDs	Yes
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
