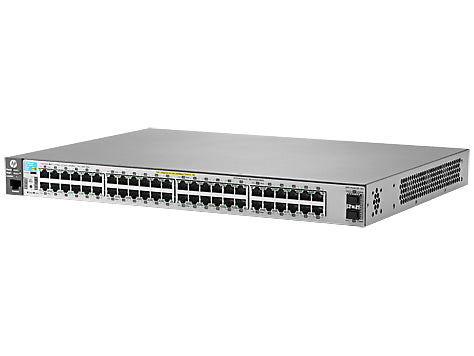

HPE 2530-48G-PoE+-2SFP+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Stainless steel

2530-48G-PoE+-2SFP+ - 48 RJ-45 10/100/1000 PoE+, 2 SFP+ fixed 1000/10000 SFP+, ARM9E 800 MHz, 128 MB flash, 136 Gb/s, 101 Mpps, 4.72 kg

Description

The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Features
Cost-Effective, Reliable and Secure Access Layer Switches

The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments.

Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0.

Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks.

Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.

Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Security and Quality of Service

The HP 2530 Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.

Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS.

Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).

Simple Deployment and Management

The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports.

Quiet operation with fanless and variable speed fan models.

Flexible deployment with wall, table, and rack mounting options.

Single View of the Network

The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	IEEE 802.3 Ethernet
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Number of VLANs	512
Auto MDI/MDI-X	Yes
Data transmission
Throughput	101 Mpps
Latency (10-100 Mbps)	7.3 µs
Latency (1 Gbps)	2.7 µs
Latency (10 Gbps)	4 µs
Packet buffer memory	3 MB
MAC address table	16000 entries
Switching capacity	136 Gbit/s
Jumbo frames support	Yes
Number of VLANs	512
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSL/TLS
Access Control List (ACL)	Yes
DHCP features	DHCP server
Protocols
Management protocols	SNMPv3
Design
Product colour	Stainless steel
Stackable	Yes
Certification	FCC; EN 55022/CISPR-22; VCCI
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Noise level	36.4 dB
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Processor model	ARM9
Packet buffer memory	3 MB
Stackable	Yes
Power
Power supply included	Yes
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	439 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	382 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 90%
Heat dissipation	215 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	512
Weight & dimensions
Width	443 mm
Depth	322.6 mm
Height	44.5 mm
Weight	4.72 kg
Technical details
Virtual stacking (units)	16
Product colour	Stainless steel
Stackable	Yes
Processor frequency	800 MHz
Noise level	36.4 dB
Built-in processor	Yes
Memory
Packet buffer memory	3 MB
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Certificates
Certification	FCC; EN 55022/CISPR-22; VCCI
