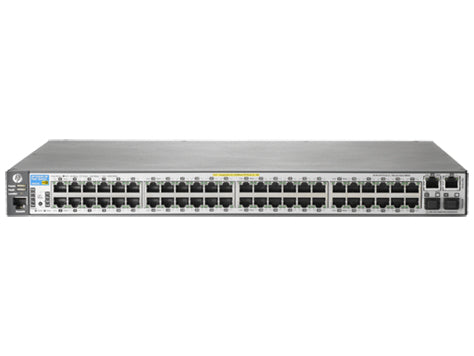

HPE 2620-48-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

2620-48-PoE+ Switch

Description

The HP 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments. This Fast Ethernet switch has a robust Basic Layer 3 feature set with static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.

The HP 2620 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software for a single view of your entire network.

Features

Flexible, Simple and Cost-effective Fast Ethernet Switches
- The HP 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments.
- Cost-effective Fast Ethernet switch with four Gigabit Ethernet uplinks (two copper and two SFP) and support for external and redundant power supplies for improved network resiliency and quickly scaling of PoE+ devices.
- Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.

Power at the Edge
- The HP 2620 Switch Series is designed with up to 370 W of internal PoE+ power and easily scales to 740 Watts with simple connection to EPS/RPS. A model with 128 W is ideal when you only need to power several PoE+ devices.
- Optional redundant power with external RPS/EPS enhances network resiliency. Highly rated, 80 PLUS Silver Grade Power Supplies on the HP 2620-24-PoE+ and HP 2620-48-PoE+ switches conserve energy resources.
- Increase performance with selectable queue configurations and associated memory buffering that meet your network application performance requirements.

Security and Quality of Service (QoS) You Can Rely on
- The HP 2620 Switch Series includes security and (QoS) features to build a network that meets ever-changing corporate policies and compliances and helps protect your data from both inside and outside attacks.
- The HP 2620 Switch Series supports flexible authentication options include standards based security protocols such Local MAC, 802.1X, and MAC and Web for greater, policy-driven application security.
- Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels that are mapped to eight queues.
- Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Defend your IPv6 network with DHCPv6 Protection.

Single View of the Network
- The HP 2620 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity	2
Console port	RJ-45
Network
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Throughput	13 Mpps
Latency (10-100 Mbps)	8.3 µs
Latency (1 Gbps)	2.9 µs
Packet buffer memory	2 MB
MAC address table	16000 entries
Switching capacity	17.6 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	400 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	4 MB
Built-in processor	Yes
Processor model	PowerPC MPC8313
Packet buffer memory	2 MB
Stackable	Yes
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	54.9 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	382 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Heat dissipation	325 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	443 mm
Depth	368.3 mm
Height	43.9 mm
Weight	5.23 kg
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	400 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	2 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	4 MB
