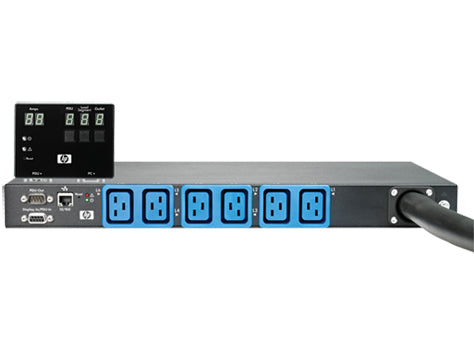

HPE 32A Intl Intelligent Modular PDU power distribution unit (PDU) 26 AC outlet(s) Black, Blue

HP 32A Intl Intelligent Modular Power Distribution Unit

Description

The new HP Intelligent Power Distribution Unit (iPDU) brings state of the art management and control to rack mounted power distribution units (PDU) to prevent over provisioning of power from restricting growth in your data center.

Using the core and stick architecture of HP Modular PDU line, the HP Intelligent PDU provides monitoring of power consumption at the core, load segment, stick, and outlet level with unmatched precision and accuracy. Remote management is built in and even provides power cycle ability of individual outlets on the Intelligent Extension Bars.

HP Power Discovery Services with Intelligent Power Discovery, combines HP iPDUs, HP Platinum power supplies, and HP Insight Control software to control and automate power distribution. When you deploy new HP ProLiant servers, HP Intelligent Power Discovery automatically discovers those servers, maps them to the power source, verifies power redundancy, and makes sure everything is hooked up correctly.

Unmatched Power Monitoring Precision!

• HP Power Discovery Services with Intelligent Power Discovery can automatically discover and map servers to specific outlets, ensuring pinpoint accuracy of power data collected


Unmatched flexibility!

• Mountable in 1U or zero U spaces to save valuable rack space. Flexible mounting of extension bars eases cable management.


Unmatched protection!

• Individual breakers for each load segment prevent a problem on one segment from causing a power outage on the entire PDU.


Unmatched ease of use!

• All hardware included and compatible with industry standard racks

Specifications

Design
PDU types	Modular
Product colour	Black, Blue
Ports & interfaces
AC outlets quantity	26 AC outlet(s)
Input connection type	(Single) IEC60309 332P6
Power
Nominal input voltage	220-240 V
Maximum current	32 A
Load capacity	7300 VA
AC input frequency	50 - 60 Hz
Certificates
Compliance certificates	RoHS
Weight & dimensions
Weight	10.1 kg
Width	546.1 mm
Depth	311.2 mm
Height	381 mm
Technical details
Compliance certificates	RoHS
Other features
Electrical output connections	6 x IEC 60320 C19; 20 x IEC 60320 C13
