HPE | SKU:
JG936A#AC3
Sold out

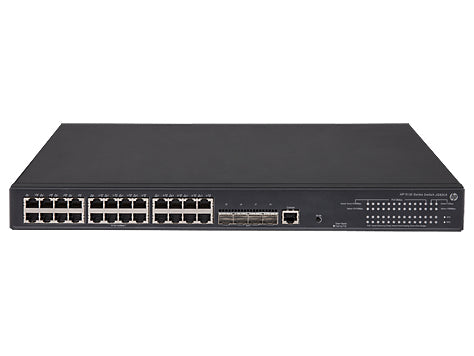

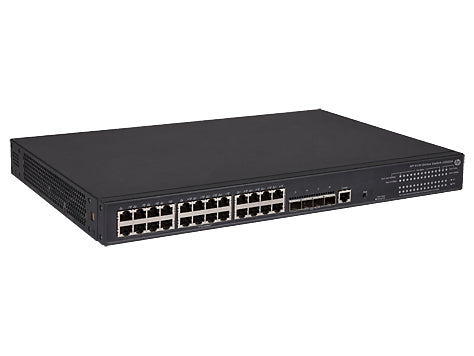

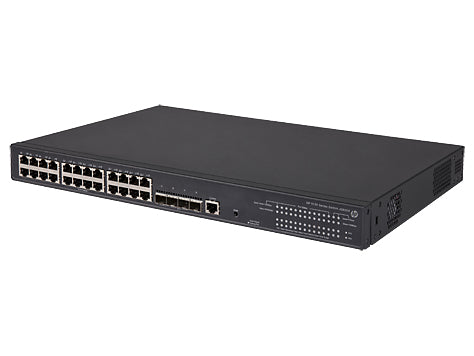

HPE 5130-24G-PoE+-4SFP+ (370W) EI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
€3,644.81
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE 5130-24G-PoE+-4SFP+ (370W) EI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
5130-24G-4SFP+ EI - 24x 10/100/1000Base-T-PoE+, 4x SFP+
Description
The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Throughput | 96 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 52.9 dB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 52.9 dB |
| Rack mounting | Yes |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 460 W |
| Input current | 10 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1569 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 43.6 mm |
| Weight | 8 kg |
