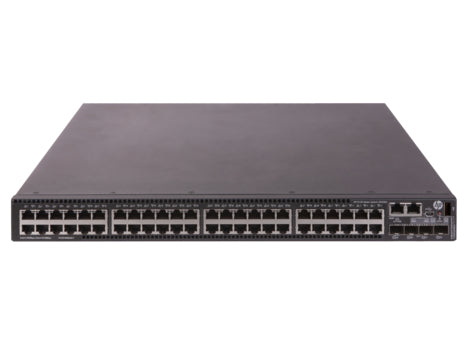

HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch

Description

The HPE FlexNetwork 5130 HI Switch Series delivers scalability and resiliency at the access layer of medium and large enterprise campus networks. This FlexNetwork switch supports enterprise class QoS and security, HPE Intelligent Resilient Framework (IRF) stacking, static Layer 3 routing and RIP, dual redundant power supplies, fixed and modular 10GbE uplinks ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.

The 5130 HI Switch Series can be managed with HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Features

Scalable and Resilient Access Layer Switches
- The HPE FlexNetwork 5130 HI Switch Series delivers scalability and resiliency for medium and large enterprise networks. It supports stacking, dual power supplies; 10GbE uplinks; static and RIP routing; PoE+; ACLs; IPv6 and power savings.
- The HPE Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
- Offers scalable stacking and backhaul capacity with four fixed 10GbE uplinks and slots for two more 10GbE uplinks, including support for 10GBASE-T.
- Dual, redundant, hot-swappable power supplies keep your network up and running and deliver up to 1440 Watts of PoE+ for powered cameras, phones and wireless access points.
- No software licensing required.

Improved Quality of Service (Q0S) with Traffic Management
- The HPE FlexNetwork 5130 HI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
- Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
- Reduce unwanted network traffic with broadcast control allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Comprehensive Security Control
- The HPE FlexNetwork 5130 HI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater policy-driven application security. Per-user access control lists (ACLs) provide identity-driven security and access control.
- ACLs provide IP Layer 2 to Layer 4 traffic filtering and support global ACL, VLAN ACL, port ACL, and IPv6 ACL.
- Security with encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection and RADIUS/HWTACAS.
- Supports industry standard MACsec for greater end-point or switch-to-switch security.

Single View of the Network
- The HPE FlexNetwork 5130 HI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications

Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	4 MB
Stackable	Yes
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
Network
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
Throughput	190.5 Mpps
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	3 µs
Packet buffer memory	4 MB
MAC address table	32768 entries
Switching capacity	216 Gbit/s
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Memory
Packet buffer memory	4 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Power
Power consumption (max)	670 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	75 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	1440 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	439.9 mm
Depth	460 mm
Height	43.7 mm
Weight	12.5 kg
Logistics data
Harmonized System (HS) code	85176990
