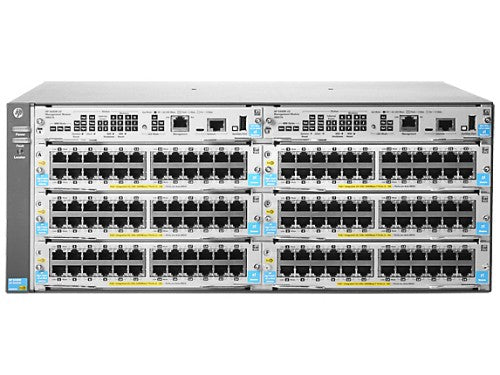

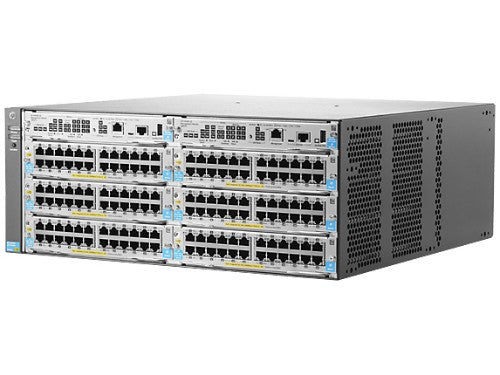

HPE 5406R zl2 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Grey

5406R zl2 Switch

Description

The HP 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high-speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.

Robust virtualization with HP AllianceOne solutions, hitless failover, QoS, and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

Features

Power and Innovation To Converge Your Mobile Campus
- The HP 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high-speed connectivity for next wave 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to converged campus networks.
- Based on the 6th generation HP Networking ASIC, the 5400R zl2 Switch Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency, unprecedented programmability, and leading edge SDN applications.
- Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate of 40 GbE, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.
- SDN ready with OpenFlow 1.3 supporting future enhancements for your network.
- License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF, and robust QoS.

Resiliency and High Availability at the Edge
- The HP 5400R zl2 Switch Series using the sixth generation HP Networking ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
- Nonstop switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
- Redundant management and power systems enhance system availability and continuity of operations.
- Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
- Powerful virtualization with versatile HP AllianceOne service modules.

Robust Security and Dynamic Quality of Service (QoS)
- The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
- The 5400R zl2 Switch Series supports flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACSec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
- Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
- Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access.
- Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.

Single View of the Network and Industry-Leading Warranty
- The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Limited Lifetime Warranty 2.0 includes 3 years 24x7 phone support.

Specifications

Network
IGMP snooping	Yes
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VLAN support	Yes
Routing entries	10000
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Stackable	Yes
Processor frequency	1200 MHz
Noise level	44 dB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Built-in processor	Yes
Processor model	QorIQ P2020
Technical details
Form factor	4U
Product colour	Grey
Stackable	Yes
Processor frequency	1200 MHz
Noise level	44 dB
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	144
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Compatible memory cards	SD
Data transmission
Throughput	571.4 Mpps
Latency (1 Gbps)	2.8 µs
Latency (10 Gbps)	1.8 µs
MAC address table	64000 entries
Switching capacity	960 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Memory
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Design
Form factor	4U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	444.5 mm
Depth	450.9 mm
Height	175.3 mm
Weight	11.1 kg
