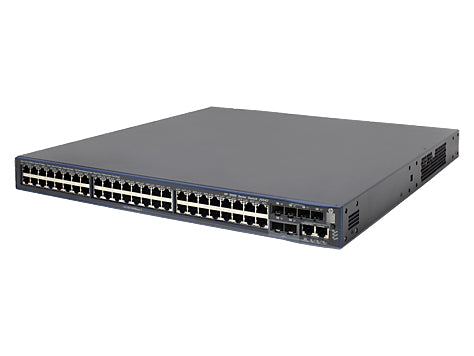

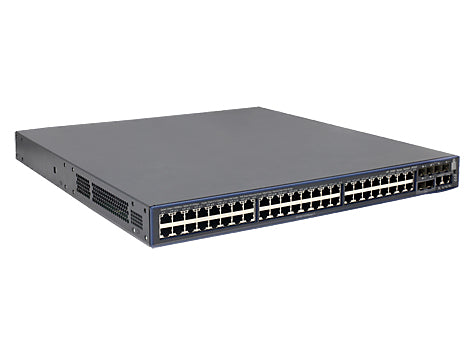

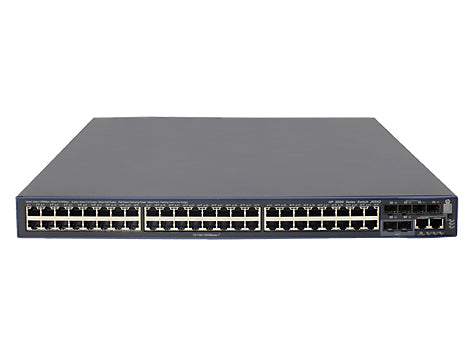

HPE 5500-48G-PoE+-4SFP HI Switch w/2 Interface Slots Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots

Description

The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support at the edge layer of large campus and branch networks. The HP 5500 HI has a robust feature set supporting 1440W PoE+, fixed and modular 10GbE, 9 chassis IRF stacking, Static & RIP Routing, OSPF, MPLS, ACLs, IPv6 and Energy Efficient Ethernet.

The HP 5500 HI Switch Series offers advanced technologies including OAM, CFD, Multi-level QoS, MPLS, and VPLS, and can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Features

Highly Resilient, More Secure and Scalable Access Layer Switches
- The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support capabilities features at the edge layer of data center and large campus networks. Advanced technologies include OAM, CFD, RRPP, BFD, Multi-level QoS, MPLS, and VPLS.
- Offers scalable stacking with fixed or modular 10GbE uplinks (SFP+ and 10GBASE-T) and up to 1440W of PoE+ power with dual redundant hot-swappable power supplies for growth and reliability.
- The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks. The 5500 HI has IPv6 support and fully featured L3 functionality, including RIP, OSPF, ISIS, BGP, and PIM.
- Includes software-defined network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.
- Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Powerful Performance with Higher Levels of Security
- The 5500 HI Switch Series provides higher levels of security with hardware-based, wire-speed access control lists (ACLs).
- Provides simple administration without impacting network performance offering feature-rich TCAM-based ACL implementation.
- Non-blocking architecture delivers up to 224 Gbps of wire-speed switching with a non-blocking switching fabric and up to 167 million pps throughput.

Robust Quality of Service
- The HP 5500 HI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
- Creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark.
- Get extensive traffic prioritization with congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ.

Comprehensive Security Control and a Single View of the Network
- The HP 5500 HI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
- Offers identity-driven security and access control with automatic VLAN assignment and per-user ACLs allow access to specific network services without risking network security. Security features include: IP source guard, DHCPv6 snooping, STP BPDU port protection, RADIUS/HWTACACS, and SSL.
- Can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
SFP module slots quantity	4
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Network
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	166.6 Mpps
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	3 µs
Packet buffer memory	6 MB
MAC address table	32000 entries
Switching capacity	224 Gbit/s
Jumbo frames support	Yes
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	9
Memory type	SDRAM
Internal memory	1024 MB
Flash memory	512 MB
Packet buffer memory	6 MB
Stackable	Yes
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	195 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	1440 W
Power over Ethernet (PoE)	Yes
Weight & dimensions
Width	439.9 mm
Depth	460 mm
Height	43.7 mm
Weight	10.5 kg
Technical details
Physical stacking (units)	9
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Memory
Packet buffer memory	6 MB
Memory type	SDRAM
Internal memory	1024 MB
Flash memory	512 MB
