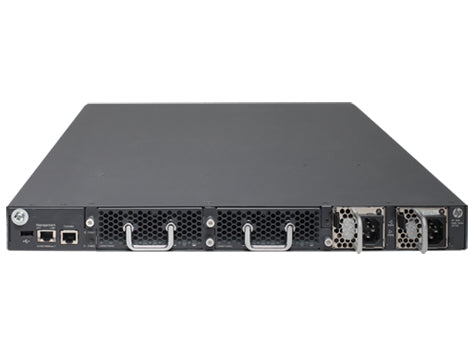

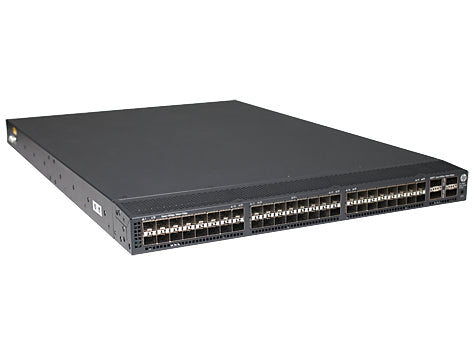

HPE 5900AF 48XG 4QSFP FB Bundle Managed L3 1U Grey

5900AF 48XG 4QSFP with 4x5900AF 8xPSU 8xF-B Fan Trays 5xDAC 64x10G SR Optics and IMC Bundle

Description

The HP 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises.

These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency.

Optional Intelligent Management Center (IMC) Software Platform for network management.

What's new
- High 1/10GbE port density with ultrafast latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
- One license for all OS features, including L3 and FCoE support.

Features

Ultra-low-latency and Wire Speed for Demanding Applications
- The HP 5900 Switch Series provides high density 10/100/100/10000BASE-T, or fiber ports for high-performance and flexible deployments
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Networking (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.

High-Performance Data Center Switching
- The HP 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.

Increased Resilience with Comware
- The HP 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, and is performed in the background.

Simplicity and Lower TCO
- The HP 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all operating system features.
- Automate tedious tasks with SDN and reclaim wasted resources.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	16000
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	9 MB
Stackable	Yes
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Ports & interfaces
QSFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports type	No
Installed SFP+ modules quantity	48
Console port	RJ-45
Data transmission
Throughput	952 Mpps
Latency (10 Gbps)	1.5 µs
Packet buffer memory	9 MB
MAC address table	128000 entries
Switching capacity	1280 Gbit/s
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	9 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	260 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	439.9 mm
Depth	659.9 mm
Height	43.7 mm
Weight	13 kg
