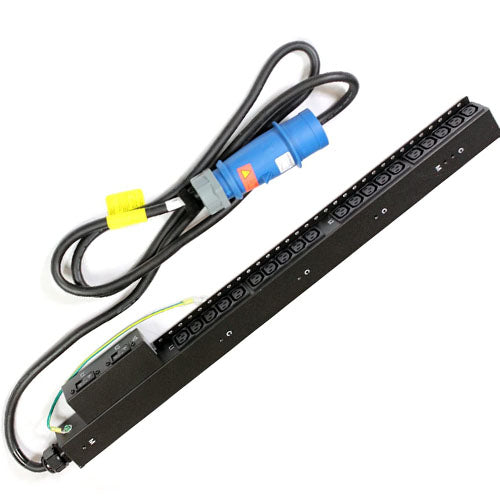

HPE 7.3kVA 230 V 20 Outlet INTL Basic power distribution unit (PDU) 20 AC outlet(s)

Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL Power Distribution Unit

Description

HPE Basic PDUs are designed to provide reliable and cost effective power distribution for your Hewlett Packard Enterprise and non-Hewlett Packard Enterprise IT racks. Offering simple 0U and 1U installation options, HPE Basic PDUs are available in multiple form factors allowing you to configure access to power in your rack where you need it the most.

HPE Vertical Basic PDUs provide a low-profile single-piece design allowing for easy access to rear devices for maintenance. Designed for HPE racks, but also compatible with a large variety of third party racks, they can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance. For higher power density configurations, they can also be installed side by side on both sides of the rack with the outlets facing in towards the center of the rack. With effective power distribution supporting from 12 to 42 outlet receptacles and power levels ranging from 2.8 kVA to 19.9kVA, HPE Vertical PDUs can provide single or three-phase power for most IT configurations.

HPE Horizontal/Modular Basic PDUs offer a unique modular architecture designed specifically for data center customers who want to maximize power distribution and space efficiencies in the rack. These PDUs consist of two building blocks - the Control Unit (core) and the Extension Bar(s) (sticks). The Control Unit is a core PDU module that offers up to six C-19 outlets which can be mounted in any 1U space or in the true 0U space on the side of HPE racks between the RETMA rails. Extension Bars (included with some models, optional on other models) mount directly to the frame of the rack in multiple locations allowing you to configure access to power where you need it the most. HPE Horizontal/Modular PDU models support up to 42 outlet receptacles (with all Extension Bars installed) and power levels ranging from 2.8 kVA to 22kVA, with options for single or three-phase power configurations.

Specifications

Design
PDU types	Basic
Ports & interfaces
AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 coupler
Power plug	IEC 60309
Power
Nominal input voltage	200 - 240 V
Maximum current	32 A
Load capacity	7300 VA
