HPE 7904 Managed Black

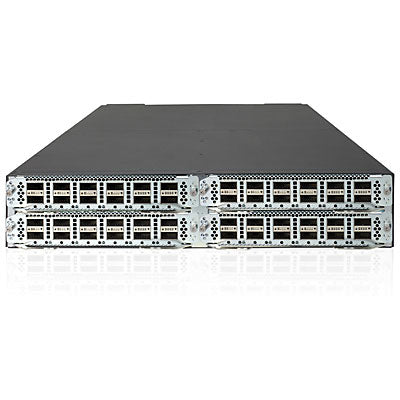

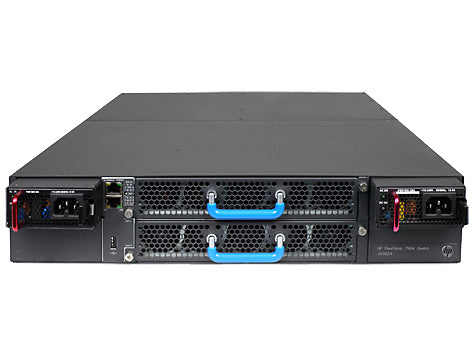

HP FlexFabric 7904 Switch Chassis

Description

HP FlexFabric 7900 Modular Core Switch is a compact modular data center core switch supporting virtualized data centers and evolutionary needs of private and public clouds deployments. Delivering unprecedented levels of performance, buffering, scale, and availability with high density 10GbE, 40GbE and 100GbE interfaces at a lower cost, using only a fraction of the footprint used by traditional chassis.

The switch supports full Layer 2 and 3 features, including advanced features such as TRILL and HP Intelligent Resilient Fabric (IRF), which enable scale-out, two-tier leaf-spine architecture

Features
Next Generation Compact Modular Data Center Core Switch

The HP FlexFabric 7900 Modular Core Switch supports virtualized data centers and public and private clouds deployments.

Supports scale-out, two-tier leaf-spine architectures with greater reliability.

Delivers Unprecedented Levels of Performance at Lower Cost

The HP FlexFabric 7900 Modular Core Switch provides high density 10GbE, 40GbE and 100GbE interfaces in a smaller footprint than a traditional modular chassis.

Combines the investment protection and flexibility of a chassis – but in a smaller foot print and at a lower entry price.

Includes feature rich HP Comware capabilities and simplified zero cost/complexity licensing.

Enables a Simplified, Automated Software-Defined Networking (SDN) Fabric

With the HP FlexFabric 7900 Modular Core Switch you get large Layer 2 scaling with TRILL and HP IRF.

Federates HP FlexFabric infrastructure with VMware NSX virtual overlay.

Supports VXLAN, NVGRE and OpenFlow 1.3.

Supports open, standards based programmability – SDN App Store and SDK.

Specifications

Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Network
Networking standards	IEEE 802.3
Data transmission
Throughput	2300 Mpps
Switching capacity	3800 Gbit/s
Design
Product colour	Black
Performance
Processor frequency	1200 MHz
Memory type	DDR2-SDRAM
Internal memory	4096 MB
Flash memory	512 MB
Built-in processor	Yes
Processor model	MIPS
Power
Power supply included	No
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	440 mm
Depth	720 mm
Height	88.1 mm
Weight	17.9 kg
Technical details
Product colour	Black
Processor frequency	1200 MHz
Built-in processor	Yes
Memory
Memory type	DDR2-SDRAM
Internal memory	4096 MB
Flash memory	512 MB
