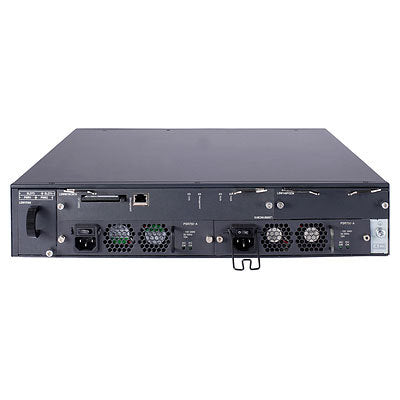

HPE A A5800-48G-PoE+ w/ 2 IS Managed L3 Power over Ethernet (PoE) Black

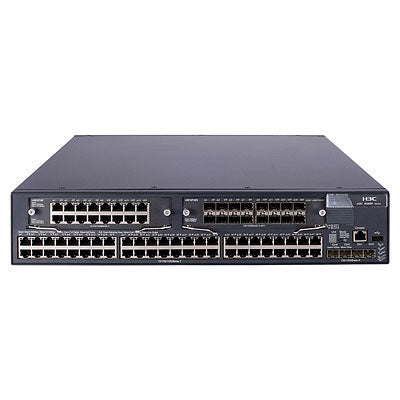

HP A5800-48G-PoE+ Switch with 2 Interface Slots

Description

HP A5800 switches offer an unmatched combination of Gigabit and 10-Gigabit Ethernet port density, high-availability architecture, and full Layer 2 and Layer 3 dual-stack IPv4 and IPv6 capabilities. Besides wire-speed line-rate performance on all ports, the switches include patented Intelligent Resilient Framework (IRF) technology and Rapid Ring Protection Protocol (RRPP) that allow local or geographically distributed A5800 switches to be interconnected for higher resiliency and performance. Available in PoE and non-PoE models and 1 RU and 2 RU flex chassis configurations, A5800 switches are built on open standards and include an open application architecture (OAA) module slot that that enables flexible deployment options for new services. These versatile switches are ideal for use in the network core for a building or department, or as a high-performance switch in the convergence layer or network edge of enterprise campus networks.

Quality of Service (QoS)

• Powerful QoS feature: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR


Management

• Remote configuration and management: is available through a secure Web browser or a command-line interface (CLI)


Connectivity

• High-density port connectivity: supports up to 84 1-Gigabit ports per unit/612 per stack


Performance

• Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps ensure high levels of security and ease of administration without impacting network performance


Manageability

• Full-featured console: provides complete control of the switch with a familiar command-line interface (CLI)


Layer 2 switching

• GARP VLAN Registration Protocol (GVRP): allows automatic learning and dynamic assignment of VLANs


Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Specifications

Management features
Switch type	Managed
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	MIB II, Bridge MIB, BGP-4 MIB, RIPv2 MIB, OSPFv2 MIB, IPV6-TCP-MIB, IPV6-UDP-MIB, IPv6 MIB, ICMPv6 MIB, SNMP-MPD MIB, Ethernet-Like-MIB, VRRP MIB, MAU-MIB, MAU-MIB, Entity MIB
Switch layer	L3
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
SFP/SFP+ slots quantity	4
Console port	RS-232
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Routing entries	16000
Number of VLANs	4096
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Throughput	211 mpps
Packet buffer memory	8 MB
MAC address table	32000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	284 Gbit/s
Maximum data transfer rate	1 Gbit/s
Number of VLANs	4096
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	IGMP, SNMPv1/v2c/v3
Data link protocols	LLDP
Supported network protocols	IPv6, CMPv6, UDP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP
Design
Safety	UL, EN, IEC, CAN/CSA, Anatel, ULAR, GOST, FDA, NOM, ROHS
Product colour	Black
Electromagnetic compatibility	VCCI, EN, ICES, ANSI, AS/NZS, EMC, FCC
Performance
Memory type	SDRAM
Internal memory	512 MB
Flash memory	512 MB
Packet buffer memory	8 MB
Power
Input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Dimensions (WxDxH)	465 x 440 x 86.1 mm
Connectivity technology	Wired
Wi-Fi	No
Power supply	300 W
Networking features	Gigabit Ethernet
Input frequency	50/60 Hz
Weight (imperial)	18 kg (39.7 lbs)
Dimensions (W x D x H) (imperial)	439.9 x 465.1 x 86.1 mm (17.3 x 18.3 x 3.39")
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	32 - 113 °F
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	6278 BTU/h
Virtual LAN features
Number of VLANs	4096
Weight & dimensions
Weight	18 kg
Weight (imperial)	18 kg (39.7 lbs)
Dimensions (W x D x H) (imperial)	439.9 x 465.1 x 86.1 mm (17.3 x 18.3 x 3.39")
Technical details
Product colour	Black
Certificates
Safety	UL, EN, IEC, CAN/CSA, Anatel, ULAR, GOST, FDA, NOM, ROHS
Electromagnetic compatibility	VCCI, EN, ICES, ANSI, AS/NZS, EMC, FCC
Memory
Packet buffer memory	8 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	512 MB
