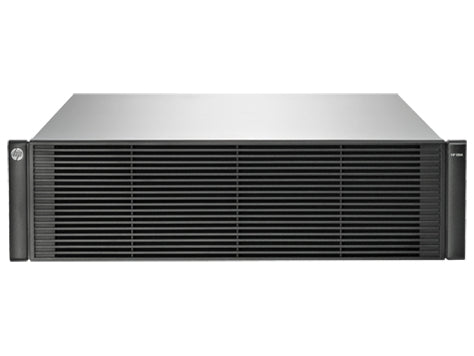

HPE AF460A uninterruptible power supply (UPS) 5 kVA 4500 W 9 AC outlet(s)

AF460A - R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

Description

Does your power protection strategy need to meet the same high standards as your IT hardware? HP Rack-mountable Uninterruptable Power Systems focus on the three critical areas for uninterruptable power in dense data center environments: power density, superior battery management and serviceability. Combining unity rating with more true wattage in smaller form factors, the HP Rack-mountable UPS is highly dense. The On-line On Demand hybrid technology optimizes efficiency and heat output during general operation. All HP Rack-mountable UPSs ship with the free HP Power Protector Software that incorporates Enhanced Battery Management, an exclusive patented technology that doubles battery service life, which lowers your costs. Hot-swappable batteries and intelligent automatic bypass for continuous power improve serviceability.

Power Density, Battery Management and Serviceability.
HP Rack-mountable Uninterruptable Power Systems provide up to 12,000 watts (W) of power in a 6-U rack form factor. This equates to 2 KW per U space, which leads the industry in power density. HP Rack-mountable UPSs offer the ability to automatically correct for over/under voltages protecting valuable equipment. The HP Rack-mountable Uninterruptable Power Systems incorporate Enhanced Battery Management: an exclusive, patented technology that doubles battery service life, extends battery recharge time, and provides advance notice of pending battery failure. HP Rack-mountable Uninterruptable Power Systems Enhanced Battery Management, gives you a lower total cost of ownership by receiving the best in the industry protection for your critical equipment. HP Rack-mountable Uninterruptable Power Systems have a uniquely designed architecture, consisting of separate, hot swappable battery and electronics modules. The built-in intelligent automatic bypass feature offers continuous power to the connected load even if the modules are being replaced.

Serviceability.
HP Rack-mountable Uninterruptable Power Systems have a uniquely designed architecture, consisting of separate, hot swappable battery and electronics modules. The built-in intelligent automatic bypass feature offers continuous power to the connected load even if the modules are being replaced. HP Rack-mountable Uninterruptable Power Systems offer faster time to repair (low MTTR), automatic and manual bypass and increased flexibility through modular design.

Specifications

Power
Output power	4500 W
Input operation voltage (min)	230 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	208 V
Output power capacity	5 kVA
Features
Output power	4500 W
Input operation voltage (min)	230 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	208 V
Output power capacity	5 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, NEMA L6-30R
Ethernet LAN (RJ-45) ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	48 h
Hot-swap battery	Yes
Design
Form factor	Rackmount
Product colour	Black
Safety	WEEE
Certification	UL cUL GS CE GOST FCC VCCI ICES CISPR UL1778 UL60950-1 CSA22.2 No.107.3, No.60-1950 EN50091-1-1 EN60950-1 IEC62040-1-1 FCC CFR 47, Part 15 Class A EN50091-2 IEC 801-2 IEC 801-3 IEC 801-4 IEC 801-5
Technical details
Compliance certificates	RoHS
Weight & dimensions
Weight	57.2 kg
Width	436.8 mm
Height	140 mm
Depth	744 mm
Certificates
Safety	WEEE
Certification	UL cUL GS CE GOST FCC VCCI ICES CISPR UL1778 UL60950-1 CSA22.2 No.107.3, No.60-1950 EN50091-1-1 EN60950-1 IEC62040-1-1 FCC CFR 47, Part 15 Class A EN50091-2 IEC 801-2 IEC 801-3 IEC 801-4 IEC 801-5
Other features
Management platform	SNMP
