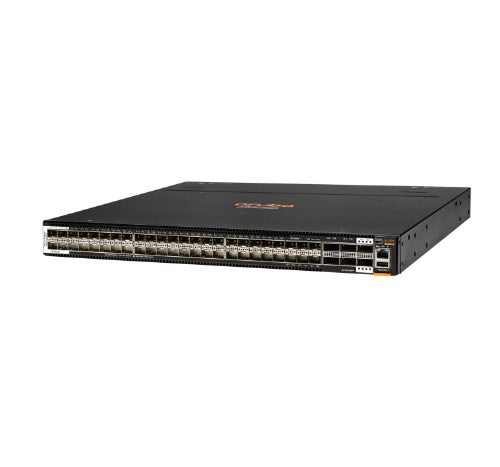

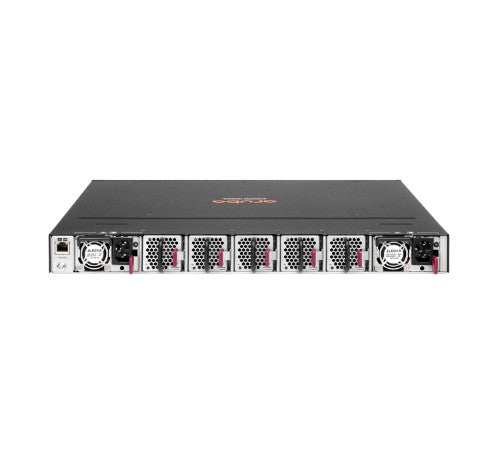

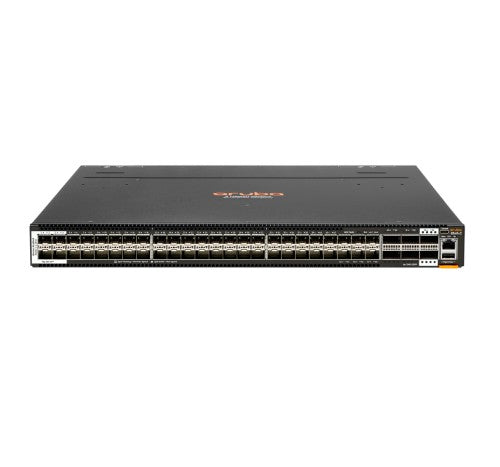

HPE Aruba 8360-48Y6C v2 Power to Port Airflow 5 Fans 2 PSU Managed L3 1U

Aruba 8360-48Y6C v2 Power to Port Airflow 5 Fans 2 Power Supply Units Attached Bundle

Description

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.

Features

Modular Cloud-Native Architecture
- The Aruba CX 8360 v2 Switch Series AOS-CX simplify the complexities of managing data center networks with automation options to match your IT organization’s operating model.
- Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
- REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
- Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.

Aruba Network Analytics Engine
- The Aruba Network Analytics Engine (NAE) for advanced telemetry and automation. NAE is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues.
- Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High Availability and Resiliency
- All software processes in the Aruba CX 8360 v2 Switch Series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.
- The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX).
- Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.

Software-Defined Automation
- The Aruba CX 8360 v2 Switch Series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Cloud-managed	Yes
Network
IGMP snooping	Yes
MLD entries	7000
IPv6 multicast entries	7000
IPv4 multicast entries	7000
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	Port-based VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Port-based VLAN
Data transmission
Number of VLANs	4094
MAC address table	212992 entries
Switching capacity	4800 Gbit/s
Jumbo frames support	Yes
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Performance
Stackable	No
Processor frequency	1800 MHz
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Technical details
Form factor	1U
Stackable	No
Processor frequency	1800 MHz
Rack mounting	Yes
Built-in processor	Yes
Compliance certificates	RoHS
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Console port	RJ-45/USB Type-C
QSFP28 ports quantity	6
SFP28 ports quantity	48
USB Type-A ports quantity	1
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
MLD entries	7000
IPv6 multicast entries	7000
IPv4 multicast entries	7000
Protocols
Management protocols	SNMPv2c, SNMPv3
Routing protocols	BGP, BGP4, OSPF, RIP-2, RIPng, VRRP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Memory
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Design
Form factor	1U
Stackable	No
Rack mounting	Yes
Airflow direction	Back-to-front airflow
Number of fans	5 fan(s)
Redundant fans support	Yes
Power
Power consumption (max)	725 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4600 m
Heat dissipation	1450 BTU/h
Weight & dimensions
Width	442.5 mm
Depth	558.8 mm
Height	44 mm
Weight	10.7 kg
