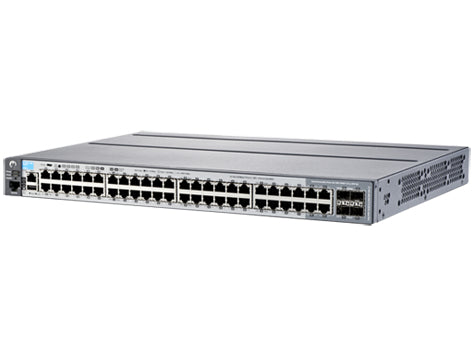

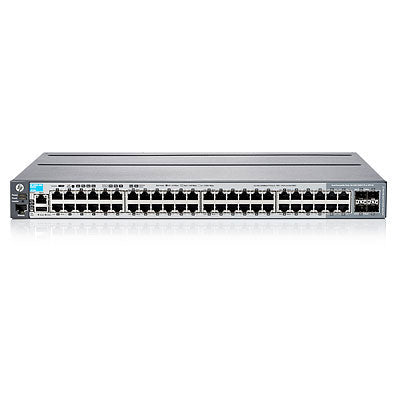

HPE Aruba Networking 2920 48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

HP 2920-48G Switch

Description

The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.

Quality of Service (QoS)

• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues


Connectivity

• Flexible 10 Gbps Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)


Performance

• Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.


Software-defined networking

• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Convergence

• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic


Resiliency and high availability

• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w


Management

• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Switching optical modules type	40 Gigabit Ethernet
Network
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	2048
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Optical fiber
Switching optical modules type	40 Gigabit Ethernet
Data transmission
Throughput	130.9 Mpps
Latency (10-100 Mbps)	9 µs
Latency (1 Gbps)	3.3 µs
Latency (10 Gbps)	3.2 µs
Packet buffer memory	11.25 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Virtual stacking (units)	4
Processor frequency	625 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	1024 MB
Built-in processor	Yes
Processor model	ARM11
Packet buffer memory	11.25 MB
Stackable	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	70 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	239 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442.5 mm
Depth	336 mm
Height	44.5 mm
Weight	5.42 kg
Technical details
Virtual stacking (units)	4
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	625 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	11.25 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	1024 MB
