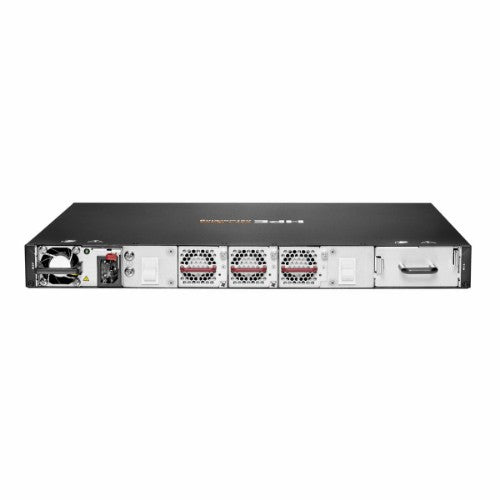

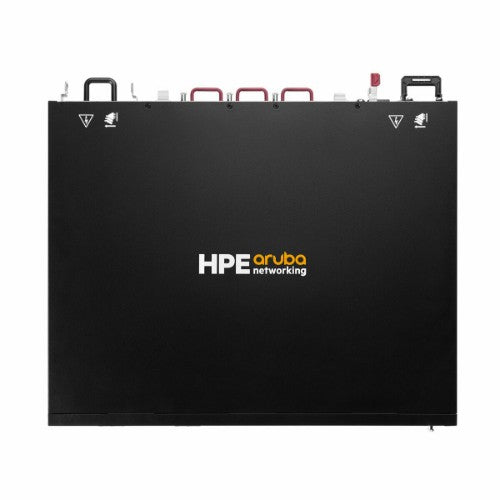

HPE Aruba Networking 9114 Hybrid gateway/controller 1000, 10000 Mbit/s

Aruba Networking 9114 Hybrid Gateway 4xSFP+ 4xCombo 1 Expansion

Description

Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity – even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE ArubaOS 10 and HPE Aruba Networking Central, help drive efficient IT operations.

The HPE Aruba Networking 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of HPE ArubaOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.

Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.

Specifications

Design
Mounting type	Rack mounting
Rack capacity	1U
Product colour	Black
Features
Mean time between failures (MTBF)	280165 h
Network
Ethernet LAN data rates	1000,10000 Mbit/s
Firewall throughput	20000 Mbit/s
3DES/AES throughput	20 Gbit/s
Security
MAC address filtering	Yes
Access Control List (ACL)	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Console port	RJ-45
SFP+ ports quantity	4
Combo SFP ports quantity	4
Power
Output voltage	12 V
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption (max)	185 W
Weight & dimensions
Weight	6.2 kg
Width	442 mm
Height	43.7 mm
Depth	351 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Technical details
Mean time between failures (MTBF)	280165 h
Performance
Mounting type	Rack mounting
Rack capacity	1U
Product colour	Black
