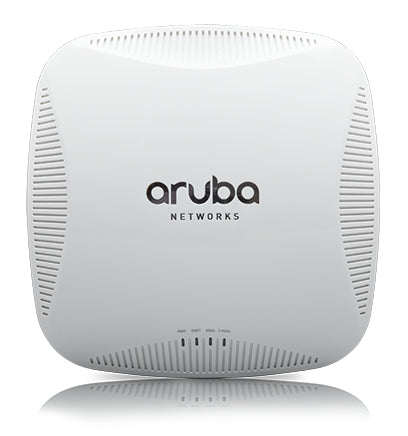

HPE Aruba Networking AP-214 1300 Mbit/s White Power over Ethernet (PoE)

2.4/5 GHz, 1.3 Gbps, 3×3 MIMO, 3 x RP-SMA, DSSS, 14.9 W, USB, 610 g

Description

High-performance and cost-effective 210-series 802.11ac APs maximize mobile device performance in medium- to high-density Wi-Fi environments.

Leveraging three spatial streams, these dual-radio APs deliver wireless data rates up to 1.3 Gbps for 802.11ac and up to 450 Mbps for 802.11n-enabled mobile devices.

The AP-215 and IAP-215 models have six integrated omni-directional downtilt antennas, while the AP-214 and IAP-214 support external, detachable dual-band antennas using three RP-SMA connectors.

Not just faster, smarter

With AppRF™ and ClientMatch™, 210-series APs protect business-critical apps and eliminate sticky clients while roaming.

Friendly to Aruba Bluetooth Beacons

Connect Aruba Beacons to any 210-series USB port to deliver indoor location services that can be centrally managed.

You have the freedom to choose

The 210 series can be managed by an Aruba Mobility Controller or deployed in controllerless Aruba Instant mode.

Choose your operating mode

The 210 series supports your choice of operating modes to meet unique management and deployment requirements.

- Controller-managed AP or Remote AP (RAP) running ArubaOS™. When managed by Aruba Mobility Controllers, 210 series APs offer centralized configuration, data encryption, policy enforcement and network services as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
- Aruba Instant™ AP running InstantOS™. In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.For large installations across multiple sites, the Aruba Activate™ service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory-shipped to any site and configure themselves when powered up.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	23 dBmW
Reset button	Yes
Firmware upgradeable	Yes
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Maximum data transfer rate	1300 Mbit/s
MIMO	Yes
Wireless LAN features
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Network
Spread spectrum method	DSSS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Bandwidth
Channel bandwidth	80 MHz
Security
Cable lock slot	Yes
Management features
Quality of Service (QoS) support	Yes
Firmware upgradeable	Yes
Certificates
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	23 dBmW
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Maximum data transfer rate	1300 Mbit/s
MIMO	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (max)	14.9 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling
Product colour	White
Reset button	Yes
LED indicators	Yes
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Number of connectors	3
Antenna type	Internal
Antenna gain level (max)	2 dBi
Antenna connector type	RP-SMA
Antenna features	Detachable antenna
Technical details
Transmitting power	23 dBmW
Reset button	Yes
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Weight & dimensions
Width	180 mm
Depth	180 mm
Weight	610 g
Height	45 mm
Package width	220 mm
Package depth	225 mm
Package height	55 mm
Package weight	860 g
Packaging data
Mounting kit	Yes
Package width	220 mm
Package depth	225 mm
Package height	55 mm
Package weight	860 g
AC adapter included	No
Packaging content
Mounting kit	Yes
AC adapter included	No
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
