HPE | SKU:
JW173A
Sold out

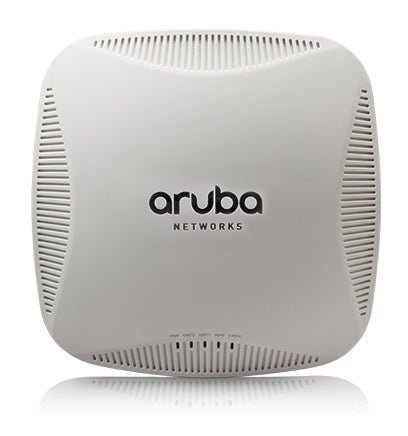

HPE Aruba Networking AP-224 1900 Mbit/s White Power over Ethernet (PoE)
€1,142.80
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE Aruba Networking AP-224 1900 Mbit/s White Power over Ethernet (PoE) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Aruba AP-224 FIPS/TAA Dual 3X3:3 11ac AP
Description
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1900 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Transmitting power | 23 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Spread spectrum method | DSSS |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Certification | FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 |
| Maximum data transfer rate | 1900 Mbit/s |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK |
| Network | |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Security | |
| Cable lock slot | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Certificates | |
| Certification | FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Transmitting power | 23 dBmW |
| Spread spectrum method | DSSS |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1900 Mbit/s |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 17 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Number of connectors | 3 |
| Antenna type | External |
| Antenna gain level (max) | 3 dBi |
| Antenna connector type | RP-SMA |
| Antenna features | Detachable antenna |
| Technical details | |
| Transmitting power | 23 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 203 mm |
| Depth | 203 mm |
| Weight | 750 g |
| Height | 54 mm |
| Package width | 315 mm |
| Package depth | 265 mm |
| Package height | 100 mm |
| Package weight | 1.25 kg |
| Packaging data | |
| Mounting kit | Yes |
| Package type | Box |
| Package width | 315 mm |
| Package depth | 265 mm |
| Package height | 100 mm |
| Package weight | 1.25 kg |
| AC adapter included | No |
| Packaging content | |
| Mounting kit | Yes |
| AC adapter included | No |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
