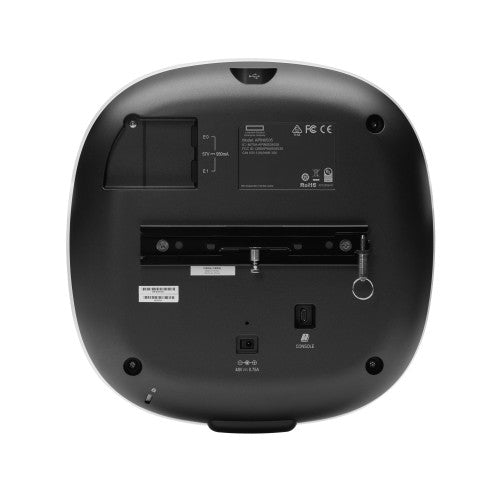

HPE Aruba Networking AP-535 (US) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP

Aruba Networking AP-535 (US) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP

Reasons To Buy

Boost your Wi-Fi 6 Performance

The HPE Aruba Networking 530 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types providing up to 2.97 Gbps combined aggregate data rate.
Dual-radio (dual 4x4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it it receives one of the best radio signals.
Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).

Security By Design

The HPE Aruba Networking 530 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
The AP simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the 530 series include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

IoT Ready

The HPE Aruba Networking 530 Series Campus Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support), as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that helps verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Sustainability

The HPE Aruba Networking 530 Series Campus Access Points support AI-powered dynamic power save mode which enables APs to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint.
The intelligent power monitoring (IPM) provides the ability to enable or disable capabilities based on available PoE power.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.

Description

The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.

What is new supporting point:
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments

Specifications

Data transmission
Ethernet LAN data rates	5000 Mbit/s
Maximum data transfer rate	3550 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	5000 Mbit/s
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)
Maximum data transfer rate	3550 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Network
Spread spectrum method	DSSS, OFDM
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Security
Cable lock slot	Yes
Security algorithms	WMM, WPA, WPA2
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	5000 Mbit/s
Maximum data transfer rate	3550 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Power consumption (max)	23.3 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)
Cable lock slot	Yes
Cable lock slot type	Kensington
Recommended usage	Indoor
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5.4 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Weight (imperial)	0.998 kg (2.2 lbs)
Compliance certificates	Federal Communications Commission (FCC), ISED, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)
Compliance certificates	Federal Communications Commission (FCC), ISED, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	240 mm
Depth	240 mm
Weight	1 kg
Height	57 mm
Other features
I/O ports	E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
Weight (imperial)	0.998 kg (2.2 lbs)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
