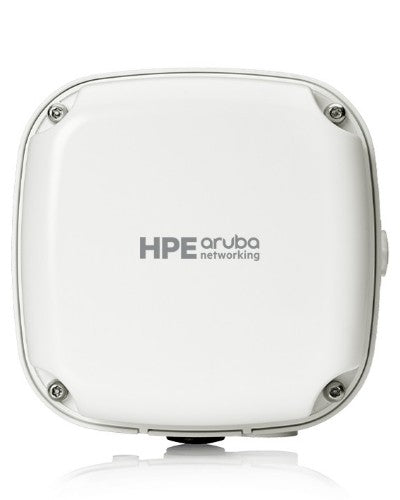

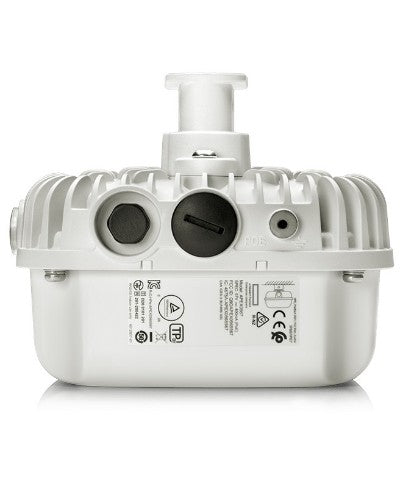

HPE Aruba Networking AP-567EX (IL) Dual Radio 2x2 Wi-Fi 6 Internal Directional HazLoc Access Point

Aruba Networking AP-567EX (IL) Dual Radio 2x2 Wi-Fi 6 Internal Directional HazLoc Access Point

Reasons To Buy

IoT Ready

HPE Aruba Networking 560EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
The target wake time (TWT) improves battery life of IoT devices.
The HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Cost-Effective Outdoor Wi-Fi 6 For HazLoc Environments

HPE Aruba Networking 560EX Series Hazardous Location Access Points provide Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations, provide up to 1.49 Gbps combined aggregate data rate and high performance wireless connectivity for outdoor hazardous locations.
It supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the strong radio signals.

Deploy In Hazardous Locations

HPE Aruba Networking 560EX Series Hazardous Location Access Points are purpose-built to survive in one of the harshest outdoor hazardous locations and can withstand extreme temperatures, persistent moisture and precipitation and are fully sealed to keep out airborne contaminants.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +55˚C, including full sun deployments.
Class 1 Division 2 and ATEX Zone 2 are certified for one of the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
It offers small form factor for flexible deployment.

Enhanced Security

HPE Aruba Networking 560EX Series Hazardous Location Access Points offers dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
This AP simplifies policy enforcement by using PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the 560EX series includes an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

Description

HPE Aruba Networking 560EX Series Hazardous Location Access Points provide cost-effective Wi-Fi 6 connectivity for outdoor hazardous locations like oil fields and rigs, mining facilities, and environments with explosive atmospheres and vapors that need Class 1 Division 2 or ATEX Zone 2 solutions. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560EX series delivers the speed and reliability needed to bring Wi-Fi to hazardous locations. These Wi-Fi 6 outdoor access points (APs) are purpose-built for hazardous locations and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560EX series includes a limited lifetime warranty.

What is new supporting point:
It has client and RF optimization to match clients with the top available AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforces consistent policies across every network, keeping users and devices secure
It is purpose built for hazardous locations and to survive in one of the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 APs provide up to 1.49 Gbps maximum aggregate data rate
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee

Specifications

Data transmission
Ethernet LAN data rates	1000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000 Mbit/s
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Network
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
Features
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
Recommended usage	Outdoor
Technical details
Weight (imperial)	1.09 kg (2.4 lbs)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	165 mm
Depth	130 mm
Weight	1.09 kg
Height	165 mm
Other features
I/O ports	E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)	1.09 kg (2.4 lbs)
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
