HPE | SKU:
R4W31A
Sold out

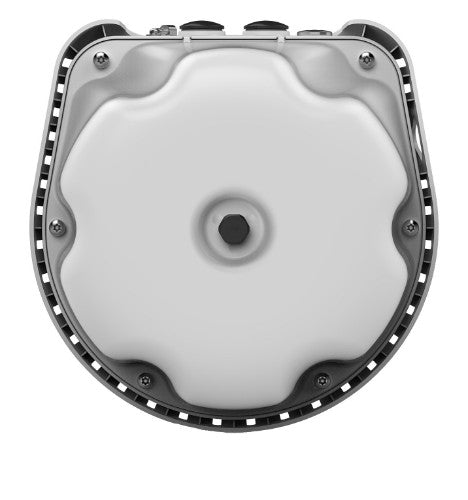

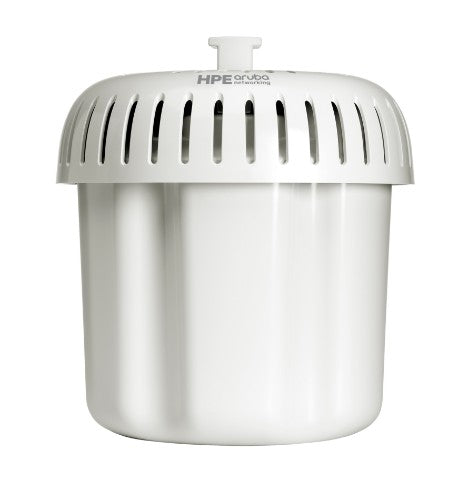

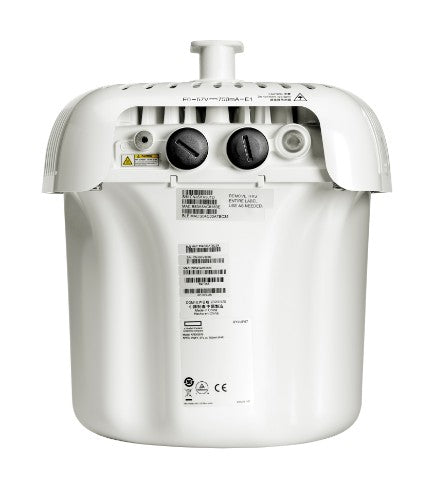

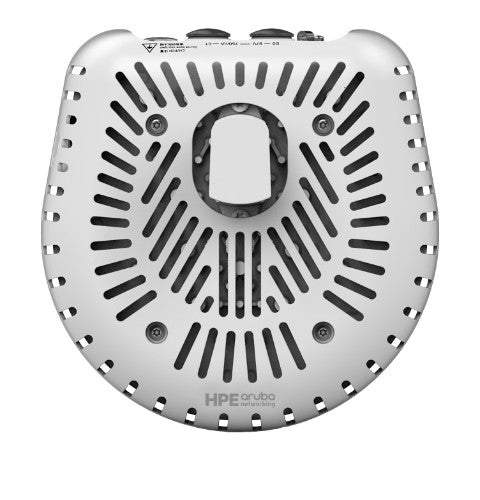

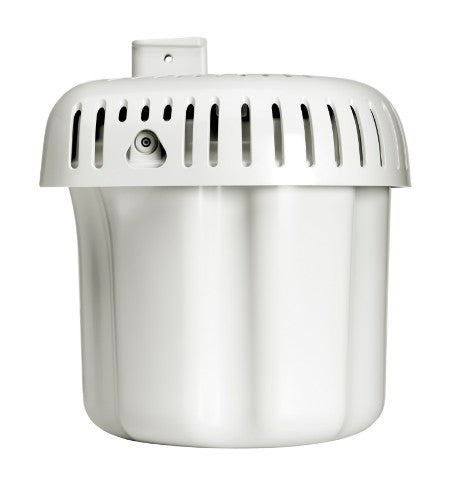

HPE Aruba Networking AP-575EX (IL) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point
€2,483.48
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE Aruba Networking AP-575EX (IL) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Aruba Networking AP-575EX (IL) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
The series supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
It offers enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives a good radio signal.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full sun deployments.
The series is Class 1 Division 2 and ATEX Zone 2 certified for the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
The 570EX series offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using a PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking APs include an installed trusted platform module (TPM).
What is new supporting point:
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate
Purpose built for hazardous locations and to survive in some of the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C)
Provides policy enforcement for wireless traffic through dynamic segmentation
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls automatically enforces consistent policies across networks, keeping users and devices secure
Reasons To Buy
IoT Ready
HPE Aruba Networking 570EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Ruggedized Outdoor Wi-Fi 6
HPE Aruba Networking 570EX Series Hazardous Location Access Points provide Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations and provide up to 2.69 Gbps combined peak data rate. It provides high-performance wireless connectivity for outdoor hazardous locations.The series supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
It offers enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives a good radio signal.
Deploy In Hazardous Locations
HPE Aruba Networking 570EX Series Hazardous Location Access Points are purpose-built to survive in some of the harshest outdoor hazardous locations and can withstand extreme temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full sun deployments.
The series is Class 1 Division 2 and ATEX Zone 2 certified for the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
Enhanced Security
HPE Aruba Networking 570EX Series Hazardous Location Access Points offer enhanced security with dynamic segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.The 570EX series offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using a PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking APs include an installed trusted platform module (TPM).
Description
HPE Aruba Networking 570EX Series Hazardous Location Access Points provide high-performance wireless connectivity for outdoor hazardous locations like oil fields and rigs, mining facilities, and environments with explosive atmospheres and vapors that require Class 1 Division 2 or ATEX Zone 2 requirements. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 2.69 Gbps, the 570EX series delivers speed and reliability needed to bring Wi-Fi to hazardous locations. These ruggedized outdoor access points (APs) are purpose-built for hazardous locations and can be quickly deployed using zero touch provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 570EX series includes a limited lifetime warranty.What is new supporting point:
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate
Purpose built for hazardous locations and to survive in some of the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C)
Provides policy enforcement for wireless traffic through dynamic segmentation
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls automatically enforces consistent policies across networks, keeping users and devices secure
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 4800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Certification | CB Scheme Safety, cTUVus Wi‑Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2 |
| Maximum data transfer rate | 4800 Mbit/s |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface |
| USB connector type | USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 4800 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO | Yes |
| Trusted Platform Module (TPM) | Yes |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 32 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP66, IP67 |
| Placement | Ceiling, Pole, Wall |
| Product colour | White |
| Certification | CB Scheme Safety, cTUVus Wi‑Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2 |
| Recommended usage | Outdoor |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Weight (imperial) | 2.4 kg (5.3 lbs) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | CB Scheme Safety, cTUVus Wi‑Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Software | |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 240 mm |
| Weight | 2.4 kg |
| Height | 270 mm |
| Other features | |
| I/O ports | E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface |
| Weight (imperial) | 2.4 kg (5.3 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 3000 m |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
