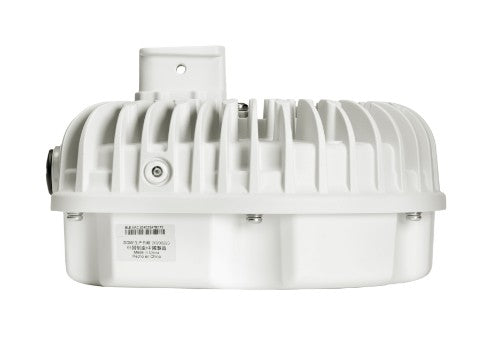

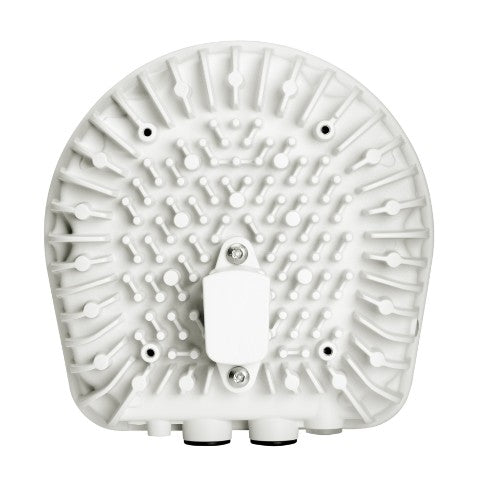

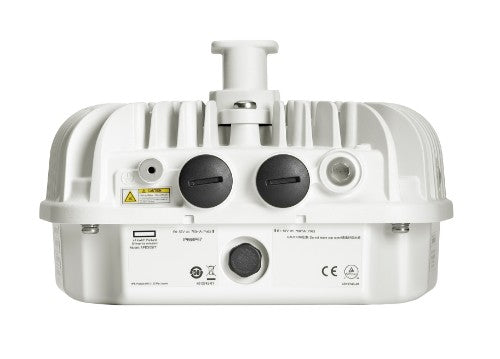

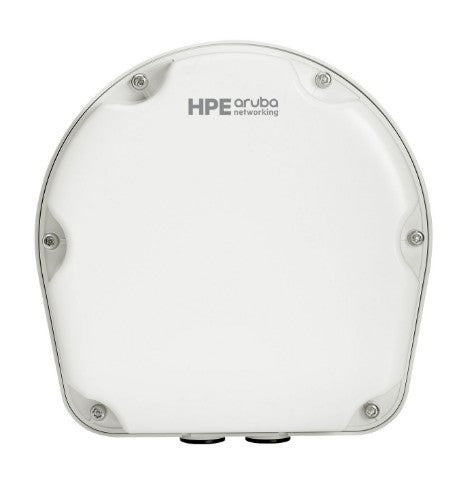

HPE Aruba Networking AP-577 (EG) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional Outdoor AP

Aruba Networking AP-577 (EG) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional Outdoor AP

Reasons To Buy

Reliable Outdoor Wi-Fi 6

HPE Aruba Networking 570 Series Outdoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation and fully sealed to keep out airborne contaminants.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full sun deployments.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the best radio signal.

IoT Ready

HPE Aruba Networking 570 Series Outdoor access points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
It supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target wake time (TWT) improves the battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that helps verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Simple Access With Enhanced Security

The HPE Aruba Networking 570 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking access points include an installed trusted platform module (TPM).

Description

The HPE Aruba Networking 570 Series Outdoor Access Points provide high-performance Wi-Fi 6 wireless connectivity for harsh outdoor weather conditions such as parking lots, stadiums, and public venues. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and a maximum aggregate data rate of 2.69 Gbps, the 570 series delivers the speed and reliability needed to bring Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 570 series include a limited lifetime warranty.

What is new supporting point:
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across networks, keeping users and devices secure.
Outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate.

Specifications

Data transmission
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.39 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Certification	CB scheme safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED (tm) ac (with wave 2 features) Wi-Fi CERTIFIED Location (tm)
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.39 Gbps
Network
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.39 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
MIMO type	Multi User MIMO
MIMO	Yes
BeamForming	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Power consumption (max)	32 W
Power over Ethernet (PoE)	Yes
Design
Placement	Pole, Wall
Product colour	White
Certification	CB scheme safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED (tm) ac (with wave 2 features) Wi-Fi CERTIFIED Location (tm)
Recommended usage	Outdoor
Antenna
Antenna type	Internal
Antenna direction type	Directional
Technical details
Weight (imperial)	2.09 kg (4.6 lbs)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	CB scheme safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED (tm) ac (with wave 2 features) Wi-Fi CERTIFIED Location (tm)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Software
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
Weight & dimensions
Width	230 mm
Depth	220 mm
Weight	2.1 kg
Height	130 mm
Packaging content
Quantity per pack	1 pc(s)
Other features
I/O ports	E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)	2.09 kg (4.6 lbs)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 3000 m
System requirements
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
Logistics data
Quantity per pack	1 pc(s)
