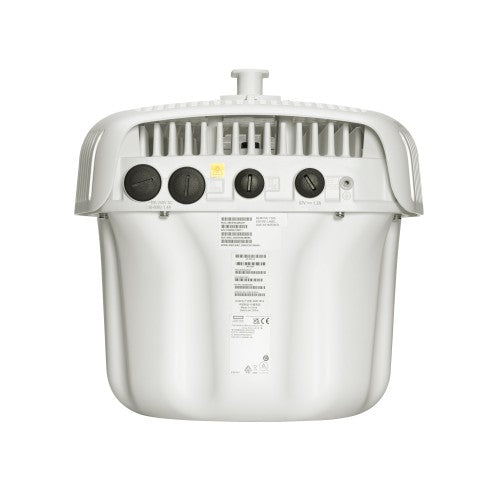

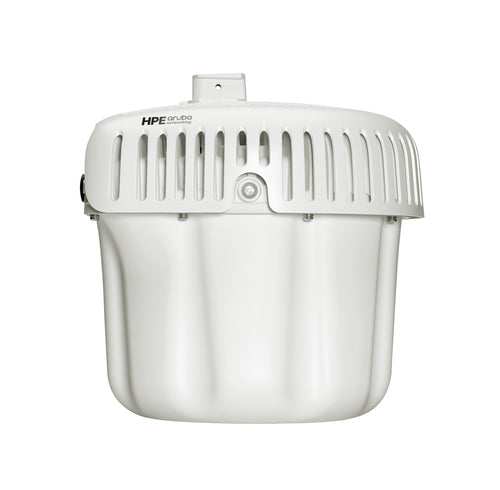

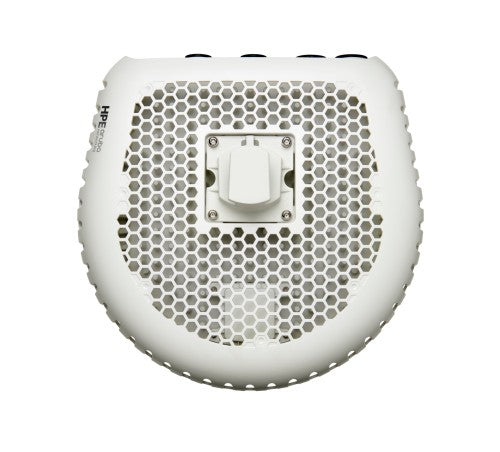

HPE Aruba Networking AP-585EX (IL) Dual Radio 4x4 802.11ax Internal Omni Ants Unified HazLoc AP

Aruba Networking AP-585EX (IL) Dual Radio 4x4 802.11ax Internal Omni Ants Unified HazLoc AP

Reasons To Buy

High Performance Ruggedized Outdoor Wi-Fi 6 APs

HPE Aruba Networking 580EX Series Hazardous Location Access Points are designed for hazardous environments, including outdoor oil rigs, industrial manufacturing, and transportation sites and provide a peak aggregate data rate of 2.97 Gbps.
The AP includes options for 5G Ethernet, SFP+, and PSE out for flexible connectivity.
It improves efficiency and security with Wi-Fi 6 capabilities including MU-MIMO, OFDMA, WPA3, and Enhanced Open.
Dual redundant power/port failover and support for AC provide high availability with uninterrupted performance.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives a strong radio signal.

Weatherproof and Temperature Hardened

HPE Aruba Networking 580EX Series Hazardous Location Access Points meet the needs of hazardous locations with Class 1, Division 2, and ATEX Zone 2 certifications like outdoor oil rigs, industrial manufacturing, and transportation sites.
The APs are ruggedized and tested for -40°C to +65°C, including full sun deployments.
The 580EX series is IP66/67 rated with industrial surge protection.
The APs can withstand extreme temperatures, persistent moisture, precipitation, and are fully sealed to keep out airborne contaminants.

Industrial IoT Ready

HPE Aruba Networking 580EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays and include integrated, high-power antennas for increased performance and coverage.
The AP provides high-power Bluetooth and 802.15.4/Zigbee radios for increased IoT coverage.
Target wake time (TWT) improves battery life of IoT devices.
Intelligent power monitoring (IPM) feature provides the ability to enable or disable capabilities based on available Power over Ethernet (PoE) power.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Enhanced Security

The HPE Aruba Networking 580EX Series Hazardous Location Access Points offer enhanced security with dynamic segmentation to remove time-consuming, error-prone tasks of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.
The AP offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
It simplifies policy enforcement by using the PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the HPE Aruba Networking 580EX Series Hazardous Location Access Points include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

Description

HPE Aruba Networking 580EX Series Hazardous Location Access Points are weatherproofed and temperature hardened to support hazardous environments, including outdoor oil rigs, industrial manufacturing, and transportation sites. With Wi-Fi 6 capabilities, high power Bluetooth and 802.15.4/Zigbee radios, and a peak aggregate data rate of 2.97 Gbps, the 580EX series delivers the speed and reliability needed for demanding Industrial Internet of Things (IoT) environments. Purpose-built to survive one of the harshest outdoor environments, the 580EX series withstands exposure to extreme high and low temperatures and persistent moisture, is fully sealed to keep out airborne contaminants, and includes industrial surge protection. The 580EX series offers flexible power and management options to meet the needs of diverse environments and can be deployed using existing mounts. The 580EX series is Wi-Fi 6 certified and backed by a limited lifetime warranty.

What is new supporting point:
Wi-Fi 6 capabilities to deliver multi-gigabit performance and speed with a peak aggregate data rate of 2.97 Gbps
Purpose-built to survive in one of the harshest outdoor environments with hazardous location Class 1 Division 2, ATEX Zone 2, and IP66 rating for hazardous locations
Seamless connectivity with RF automation (HPE Aruba Networking AirMatch), client optimization (HPE Aruba Networking ClientMatch), and AIOps (AI insights) for built-in configuration recommendations
The access point supports Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power included; no need for add-on AC power adapters
Features high-power Bluetooth and 802.15.4/Zigbee support for Industrial IoT

Specifications

Data transmission
Ethernet LAN data rates	1000,5000 Mbit/s
Maximum data transfer rate	2970 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Number of users	1024 user(s)
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,5000 Mbit/s
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
Maximum data transfer rate	2970 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Network
Spread spectrum method	DSSS, OFDM, OFDMA
Number of users	1024 user(s)
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	Ethernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface
USB connector type	USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Number of users	1024 user(s)
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,5000 Mbit/s
Maximum data transfer rate	2970 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Multi User MIMO
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
Security
Security algorithms	WPA2, WPA3
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Output voltage	110 - 240 V
Power consumption (typical)	71 W
Power over Ethernet (PoE)	Yes
Design
International Protection (IP) code	IP66
Placement	Ceiling, Pole, Wall
Product colour	White
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
Recommended usage	Outdoor
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5.8 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Weight (imperial)	5.22 kg (11.5 lbs)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	324 mm
Depth	313 mm
Weight	5.24 kg
Height	320 mm
Package width	431 mm
Package depth	415 mm
Package height	442 mm
Package weight	7.81 kg
Packaging data
Package width	431 mm
Package depth	415 mm
Package height	442 mm
Package weight	7.81 kg
Other features
I/O ports	Ethernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface
Weight (imperial)	5.22 kg (11.5 lbs)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 3000 m
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
