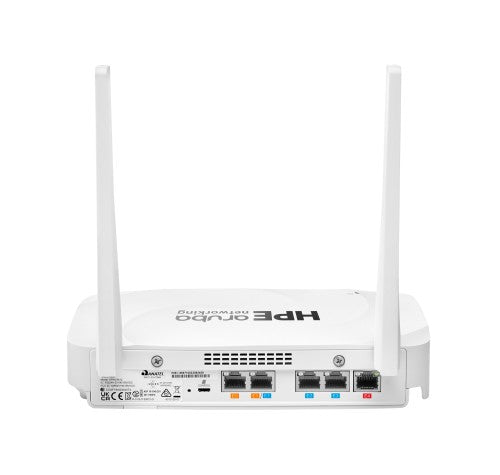

HPE Aruba Networking AP-605R (EG) Dual Radio Tri Band 2x2 Wi-Fi 6E Remote Access Point

Aruba Networking AP-605R (EG) Dual Radio Tri Band 2x2 Wi-Fi 6E Remote Access Point

Reasons To Buy

Wi-Fi 6E Performance for Remote Work and Small Branches

HPE Aruba Networking 600R Series Remote Access Points offer 6 GHz coverage with up to 1200 MHz more capacity. Two 2x2 MIMO radios deliver a maximum combined data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.
Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, bidirectional multi-user MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
For primary or backup cellular, optional CAT 12 module includes antennas and a high-speed interface for LTE connectivity.
You get convenient wired connectivity with a 2.5 Gbps uplink/downlink Ethernet port, a dedicated 1 Gbps uplink port, and three dedicated downlink ports.
It provides Internet of Things (IoT) connectivity with integrated Bluetooth 5 and 802.15.4 radio for Zigbee support and USB‑port extension for connection to a range of devices.

Remote Deployment and Management Made Simple

HPE Aruba Networking 600R Series Remote Access Points are deployed and managed using cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and temporary locations with built-in SD-WAN and cloud security.
Remote work microbranch capabilities include SD-WAN route/tunnel orchestration, policy-based routing, multiple active tunnels, WAN health visibility, and cloud security orchestration.
They include GPS receiver and fine time measurements to accurately auto-locate themselves.
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
No mounts are needed with bundles that combine a desk stand, power adapter, and power cord to mitigate excess packaging.

Boost Security

The HPE Aruba Networking 600R Series Remote Access Points offer enhanced security with dynamic segmentation to remove the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
The AP offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the access points include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

Description

HPE Aruba Networking 600R Series Remote Access Points are powerful desktop Wi-Fi 6E access points that enable IT teams to deliver seamless and secure user experiences to remote power users and small branch environments. Providing up to 3.6 Gbps combined aggregate data rate (using 5 GHz and 6 GHz bands), this series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to support increasing Wi‑Fi demands, especially for latency‑sensitive, high‑bandwidth video communications. An optional high-speed LTE cellular module provides primary or backup connectivity for mission critical use cases. Multigigabit port, gigabit ports, and integrated Bluetooth Low Energy (BLE) and Zigbee offer a range of connectivity options. IT teams can easily extend the WAN to remote employees as part of the HPE Aruba Networking Central microbranch functionality. The 600R series includes a limited lifetime warranty.

What is new supporting point:
Wi-Fi 6E access points ideal for mission-critical remote work and small branches provide flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate
Stay connected using backup or primary cellular connectivity with optional CAT 12 module that includes antennas and a high-speed interface for LTE connectivity
Convenient wired connectivity with 2.5 Gbps uplink/downlink Ethernet port and multiple 1 Gbps Ethernet ports
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Managed through cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and temporary locations

Specifications

Data transmission
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Maximum data transfer rate	3600 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Certification	Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
Maximum data transfer rate	3600 Mbit/s
MIMO type	Single User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps
Network
Spread spectrum method	DSSS, OFDM, OFDMA
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Security
Cable lock slot	Yes
Security algorithms	WPA3
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Maximum data transfer rate	3600 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
MIMO type	Single User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	287 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (6 GHz)	2400 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Power consumption (max)	40 W
Power consumption (typical)	5 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Placement	Table
Product colour	White
Certification	Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
Cable lock slot	Yes
Cable lock slot type	Kensington
Recommended usage	Indoor
Antenna
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	5.5 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Software
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
Weight & dimensions
Width	225 mm
Depth	150 mm
Weight	900 g
Height	40 mm
Package width	373 mm
Package depth	309 mm
Package height	107 mm
Package weight	1.94 kg
Packaging data
Package width	373 mm
Package depth	309 mm
Package height	107 mm
Package weight	1.94 kg
Other features
I/O ports	Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Storage relative humidity (H-H)	10 - 100%
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
