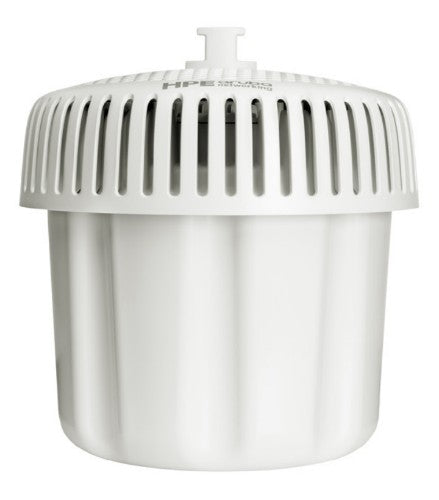

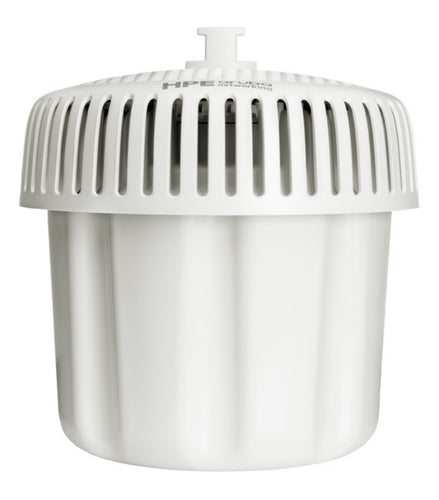

HPE Aruba Networking AP-675EX (US) Tri Radio 2x2 Wi-Fi 6E Internal Omni-Directional HazLoc AP

Aruba Networking AP-675EX (US) Tri Radio 2x2 Wi-Fi 6E Internal Omni-Directional HazLoc AP

Key Features

• Ideal for outdoor and environmentally challenging locations
• Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz for 3.9 Gbps peak aggregate data rate
• Industrial IoT-ready with highpower Bluetooth and Zigbee radios
• Fast wired connectivity with 2.5GbE and 1GbE SFP ports
• Standard Power (SP) device operation and self-locating with embedded GPS receiver
• Class 1 Division 2 and ATEX Zone 2 certified AP-670EX models

Reasons To Buy

High Performance Outdoor Wi-Fi 6E

HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MU‑MIMO, and target wake time (TWT) to extend the battery life of devices.
The 670 series provides fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps peak combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
It is self-locating with embedded GPS receiver and will operate as standard power (SP) devices that require an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
It offers convenient wired connectivity with fast 2.5GbE uplink port and 1GbE port.

Simplified Access with Enhanced Security

The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with dynamic segmentation to mitigate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
It offers network protection with stronger encryption and authentication with WPA3, secure credential/key storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It provides simplified policy enforcement with the PEF that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our access points include installed TPM for secure storage of credentials, keys, and boot code.

Ruggedized and Ready for IoT

The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
The intelligent power monitoring (IPM) provides insights into energy consumption. Our APs continuously monitor and report hardware energy usage. Unlike the other vendors APs, our APs can also be configured to enable or disable capabilities based on available PoE power.

Description

The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 series delivers more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments. The 670 series is weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points provide high performance outdoor connectivity you can depend on, delivering up to 3.9 Gbps peak aggregate data rate with a tri-radio 2x2:2 MIMO AP. This series includes the 670EX models that are designed for the most extreme, hazardous locations.

What is new supporting point:
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
Self-locating with embedded GPS receiver and will operate as standard power (SP) device

Specifications

Data transmission
Ethernet LAN data rates	2500,5000 Mbit/s
Maximum data transfer rate	3900 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	2500,5000 Mbit/s
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Maximum data transfer rate	3900 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
Network
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O ports	Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack)
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates	2500,5000 Mbit/s
Maximum data transfer rate	3900 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2 + 5.0
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	287 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (6 GHz)	2400 Mbit/s
BeamForming	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Power consumption (max)	45.5 W
Power over Ethernet (PoE)	Yes
Design
International Protection (IP) code	IP66, IP67
Placement	Pole, Wall
Product colour	White
Reset button	Yes
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Recommended usage	Outdoor
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Technical details
Reset button	Yes
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	Wi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	290 mm
Depth	288 mm
Weight	4 kg
Height	312 mm
Other features
I/O ports	Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack)
Operational conditions
Operating relative humidity (H-H)	5 - 100%
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 100%
Operating altitude	0 - 3000 m
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
