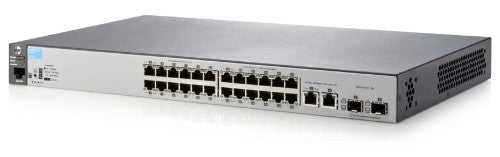

HPE Aruba Networking Aruba 2530-24 Managed L2 Fast Ethernet (10/100) 1U Grey

2530-24 Switch

Description

The HP 2530 Switch Series consists of 12 fully managed Layer 2 edge switches that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, these Gigabit and Fast Ethernet switches deliver full Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, and IPv6 host support.

The HP 2530 Switch Series offers uplink flexibility with four Gigabit Ethernet uplinks on all 24- and 48-port models. Gigabit Ethernet uplinks are four small form-factor pluggable (SFP) slots for fiber connectivity on the 24- and 48-port Gigabit Ethernet models.

The Fast Ethernet 24- and 48-port models have two SFPs and two RJ-45 Gigabit uplinks. The compact and fanless 8-port switches offer additional flexibility with two dual-personality ports that can be used as either RJ-45 Gigabit Ethernet or SFP ports.

For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530 PoE+ switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. The switch series is easy to use, deploy, and manage via SNMP, CLI, and Web GUI.

It offers flexible wall, table, and rack mounting; quiet operation with fanless and variable speed fan models; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). These switches include a lifetime warranty, as well as all software releases and technical phone support.

Features

Quality of Service (QoS)
- Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)
- Simplified QoS configuration: Port-based: prioritizes traffic by specifying a port and priority level. VLAN-based: prioritizes traffic by specifying a VLAN and priority level.
- Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic
- Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers

Management
- Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.
- Virtual stacking: provides single IP address management for up to 16 switches
- sFlow (RFC 3176): delivers wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automates device discovery protocol for easy mapping by network management applications
- Logging: provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated

Connectivity
- IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
- IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
- IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras (see product specifications for total PoE power available)
- Auto-MDIX: adjusts automatically for straight-through or crossover cables on all ports
- Pre-standard PoE support: detects and provides power to pre-standard PoE devices

Layer 2 switching
- VLANs: provides support for 512 VLANs and 4,094 VLAN IDs
- Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; 8- and 24-port Fast Ethernet models automatically support up to 2000-byte frames with no configuration needed
- 16K MAC address table: provides access to many Layer 2 devices
- GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
- Per-VLAN Spanning Tree Plus (PVST+): allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Network
Auto-sensing	Yes
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Throughput	9.5 Mpps
Latency (10-100 Mbps)	1.7 µs
Latency (1 Gbps)	1.1 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	12.8 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Packet buffer memory	1.5 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	50 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442 mm
Depth	246.4 mm
Height	44.5 mm
Weight	2.59 kg
Technical details
Virtual stacking (units)	16
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	800 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Logistics data
Harmonized System (HS) code	85176990
