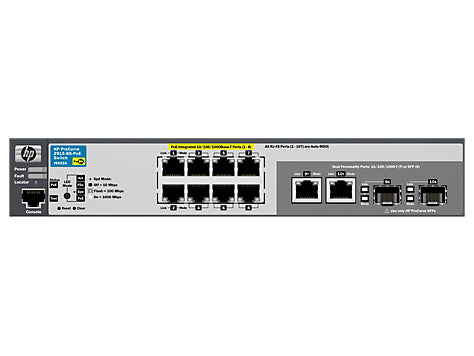

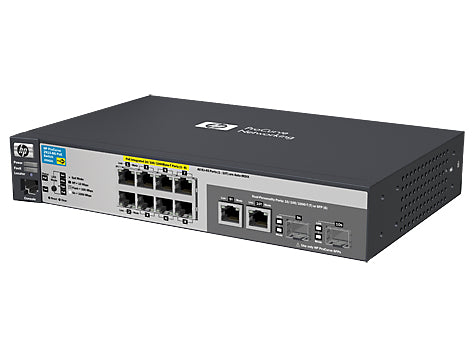

HPE Aruba Networking Aruba 2915 8G PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Aruba 2915 8G PoE Switch

Description

The Aruba 2915 Switch Series provides simple, cost-effective and reliable access layer connectivity for enterprises, branch offices and SMBs. This compact and quiet 8-port, fully managed, Basic Layer 3, Gigabit Ethernet switch with PoE is ideal for deployment in open areas, offices and environments.

A robust Basic Layer 3 feature set supports static and RIP routing, sFlow, ACLs, rate limiting, IPv6 and PoE. It is easy to use and deploy, supporting PoE devices and can be managed with the optional HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Features
Compact and Reliable Gigabit Access Layer Switch with PoE

The Aruba 2915 Switch provides simple, cost-effective and reliable access layer connectivity for enterprises, branch offices and SMBs.

This compact and quiet, 8-port fully managed Basic Layer 3 Gigabit Ethernet switch with PoE is ideal for deployment in open areas, offices and environments with limited space or are acoustically sensitive.

Robust Basic Layer 3 feature set includes support for static and RIP routing, sFlow, ACLs, rate limiting, IPv6, and PoE.

Eight Gigabit Ethernet PoE ports with two, additional, dual-personality Gigabit Ethernet ports provide copper or SFP connectivity for a total of ten ports.

Single view of the entire network with the optional HPE Intelligent Management Center (IMC) Software.

Security and Quality of Service (QoS)

The Aruba 2915 Switch supports flexible authentication methods including Local MAC, 802.1X, MAC, and Web for greater, policy-driven application security.

The Aruba 2915 Switch supports advanced denial of service (DOS) protection, such as DHCP, Dynamic ARP, and Dynamic IP lockdown, and flexible traffic controls including ACLs and QoS.

Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to two or four queues.

Rate limiting and flow control help ensure reliable communications.

Defend your IPv6 network with DHCPv6 Protection.

- Simple Deployment and Management
- The Aruba 2915 Switch supports a choice of management interfaces with Web GUI, command-line interface (CLI) and SNMP.

- The Aruba 2915 Switch Series can be seamlessly managed with the optional HPE Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- The Aruba 2915 Switch Series is compact and fanless for quiet and unobtrusive operation in open spaces, conference rooms and offices. Flexible deployment with wall, table, and rack mounting options.
- Convenient LEDs provide quick status of fault and power and per port status of activity, speed, and full-duplex operation.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	0.5 MB
Stackable	Yes
Virtual stacking (units)	16
Processor frequency	333 MHz
Memory type	DDR2-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Built-in processor	Yes
Technical details
Virtual stacking (units)	16
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	333 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Data transmission
Throughput	14.8 Mpps
Latency (10-100 Mbps)	5.3 µs
Latency (1 Gbps)	2.7 µs
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Security
SSH/SSL support	Yes
Security algorithms	SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Memory
Packet buffer memory	0.5 MB
Memory type	DDR2-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	86 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	67 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	89 BTU/h
Weight & dimensions
Width	254 mm
Depth	159.5 mm
Height	44.5 mm
Weight	1.66 kg
