HPE Aruba Networking Aruba Instant On AP17 (JP) 1167 Mbit/s White Power over Ethernet (PoE)

Aruba Instant On AP17 (JP) 2x2 11ac Wave2 Outdoor Access Point

Description

Aruba Instant On AP17 Outdoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. The weather-proof Aruba Instant On AP17 Outdoor Access Points are designed to deliver high-performance network coverage to outdoor and environmentally challenging locations like smaller manufacturing units and open-air restaurants. Enjoy stronger Wi-Fi strength even in the pool and patio area of your space.
The compact form factor of the Aruba Instant On AP17 Outdoor Access Points deliver reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.

Features

Fast Connectivity with 802.11ac Wave 2 Access Points that is Simple to Deploy
- Aruba Instant On AP17 Outdoor Access Points include an easy to use web GUI and templates so access points are up and running in minutes.
- 802.11ac Wave 2 features include 4x4:4SS and up to 160 MHz channel bandwidth.
- Dual-band wireless (2.4GHz and 5GHz) for combined speeds of up to 2Gbps support high-bandwidth activities such as video, voice, and conferencing solutions.
- Aruba Instant On AP17 Outdoor Access Points allow for any change to the primary AP configuration to be automatically pushed to every AP in the same cluster.
- A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.

Eliminates High Cost of Cabling with Full-Scale Wireless Mesh Coverage
- Aruba Instant On AP17 Outdoor Access Points feature built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
- Conveniently expands your network to hard-to-wire areas and nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.

Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
- Aruba Instant On AP17 Outdoor Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
- Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.

Simplicity is the Key to a Great Wi-Fi Experience
- The Aruba Instant On AP17 Outdoor Access Points are built with premium hardware and software quality that's reliable and comes from a trusted vendor.
- Effortless set-up right out of the box – in the palm of your hand.
- The Aruba Instant On portfolio comes with flexible management options to choose from: The Aruba Instant On mobile app guides you through step-by-step from initial set-up to ongoing management.
- Aruba Instant On AP17 Outdoor Access Points are designed for single or distributed small businesses sites such as tech start-ups, graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
- Simple to build landing page lets you customize your guest access page with your logo, your own brand, and acceptance of use language.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af
Features
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Security
Security algorithms	WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	13.5 W
Power over Ethernet (PoE)	Yes
Design

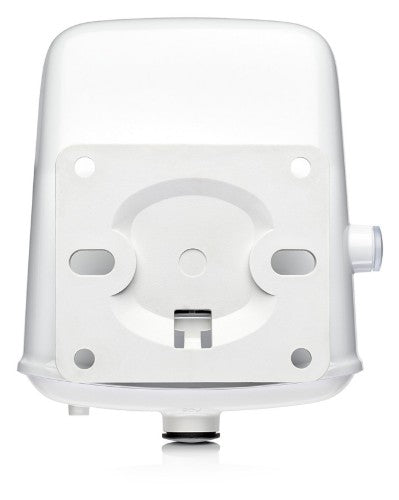

Placement	Pole, Wall
Product colour	White
LED indicators	Status
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Antenna direction type	Omni-directional
Indication
LED indicators	Status
Weight & dimensions
Width	156 mm
Depth	67 mm
Weight	650 g
Height	187 mm
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 50 °C
