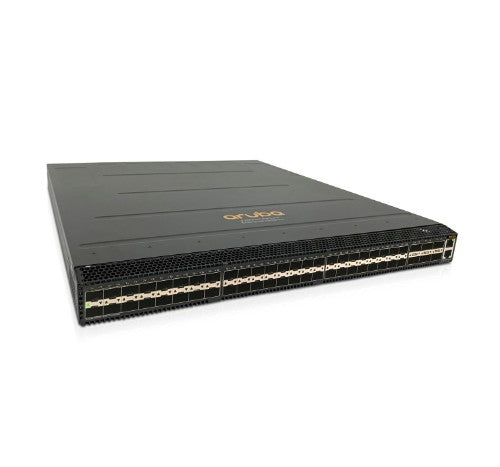

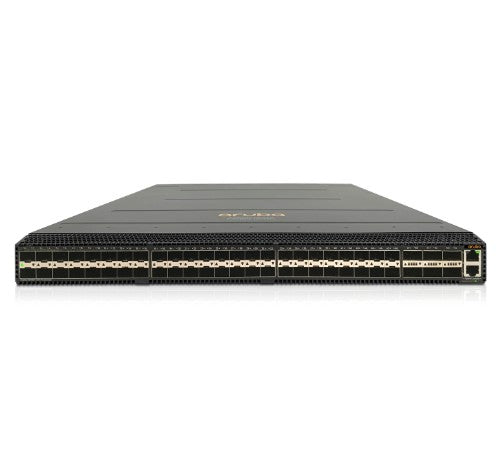

HPE Aruba Networking CX 10000-48Y6C Managed L3 1U

Aruba CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 Power Supplies Bundle

Description

The Aruba CX 10000 Switch Series with Pensando is a category of switch that combines best-of-breed Aruba data center L2/3 switching with the industry's first hardware-accelerated programmable processor (Pensando® P4). The Aruba CX 10000 delivers stateful software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional data center L2/3 switches at a fraction of their TCO.

Features

Improves Network Bandwidth and Performance
- Aruba CX 10000 Switch Series with Pensando offers a unique blend of performance and scale for distributing advanced networking and security services where it’s impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
- Simplify application of services at the services network access layer edge.

Limit Security Appliance Sprawl and Cost
- Aruba CX 10000 Switch Series with Pensando improves network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
- The Aruba CX 10000 provides a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Extend Zero Trust and Micro Segmentation
- Aruba CX 10000 Switch Series with Pensando allows operators to extend industry standard leaf-spine networking with 800G of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services—delivered inline, across every port, closer to critical enterprise applications.
- Organizations with dedicated SecOps teams can leverage Policy and Services and Manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.

Simplify Operations
- Aruba CX 10000 Switch Series with Pensando is integrated with Aruba Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
- The Aruba CX 10000 integrates via a Rest API and provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber optic connector	QSFP28, SFP28
Console port	RJ-45/Micro-USB
QSFP28 ports quantity	6
SFP28 ports quantity	48
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4018
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
Throughput	1940 Mpps
Packet buffer memory	32 MB
MAC address table	98304 entries
Switching capacity	3600 Gbit/s
Number of VLANs	4018
Security
IGMP snooping	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP server
Multicast features
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Protocols
Routing protocols	BGP4, OSPF, OSPFv3, RIP-2, RIPng
Design
Form factor	1U
Rack mounting	Yes

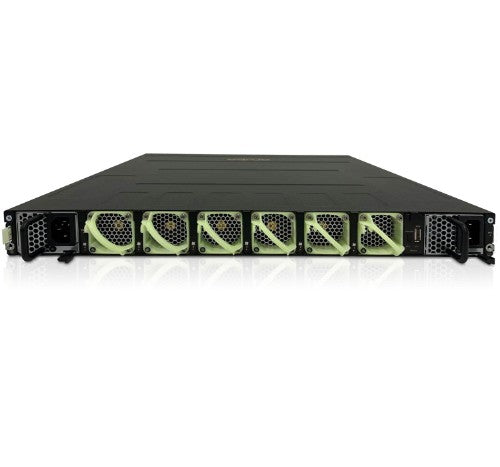

Ventilation system	Back-to-front airflow
Number of fans	6 fan(s)
Performance
Processor frequency	2900 MHz
Memory type	RAM / Flash
Internal memory	32768 MB
Flash memory	8192 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	550 W
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Heat dissipation	1876 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4018
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	438.2 mm
Depth	511 mm
Height	44.4 mm
Weight	9.75 kg
Optical fiber
Fiber optic connector	QSFP28, SFP28
Technical details
Form factor	1U
Processor frequency	2900 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	32 MB
Memory type	RAM / Flash
Internal memory	32768 MB
Flash memory	8192 MB
Other features
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
