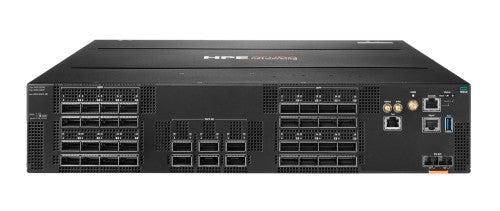

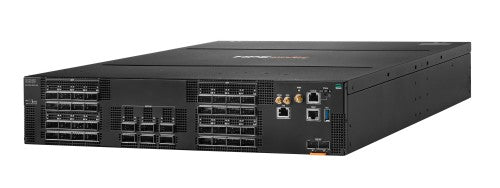

HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC Bundle

Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC Bundle

Reasons To Buy

Extend zero trust and microsegmentation

The HPE Aruba Networking CX 10000 Switch Series allows operators to extend industry-standard leaf-spine networking with 1.6T of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services delivered inline across every port closer to critical enterprise applications.
Organizations with dedicated SecOps teams can leverage Pensando policy and services manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.
Extends zero trust segmentation deeper into the data center for any type of host.
Optimizes network traffic flows, bandwidth, and performance, which reduces operational complexity associated with service switching.
The switch series allow operators to extend industry-standard leaf-spine networking with distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline, all the time, on every access port, closer to where critical enterprise applications run.

Simplify operations

The CX 10000 series is integrated with HPE Aruba Networking Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
The CX 10000 series integrates through Rest API, provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.
The switch series is based on the HPE Aruba Networking CX Operating System(AOS-CX), a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.

Improves network bandwidth and performance

The HPE Aruba Networking CX 10000 Switch Series offers a unique blend of performance and scale for distributing advanced networking and security services where it is impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
Simplify application of services at the services network access layer edge.
All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future. CX 10000 models provide 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding. CX 10040 models offer 8 Tbps of switching capacity, 1.6 Tbps of L4 stateful inspection.

Limit security appliance sprawl and cost

The CX 10000 series improves network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
The CX 10000 series provides a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Description

HPE Aruba Networking CX 10000 Switch Series, industry's first DPU-enabled switches, delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge and co-located centers of data. The switch series is a category of switches that combines the best-of-breed network operating system, HPE Aruba Networking CX Switch Operating System (AOS-CX), for data center, campus, and edge in addition to the fully programmable DPUs. This allows the switches to deliver software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/L3 switches at a fraction of their TCO. This allows the flexibility to enable service delivery, when deployed as access, leaf top-of-rack (ToR), or end-of-row (EoR) in a data center, and potentially in the aggregation layer in campus or edge data center designs.

What is new supporting point:
Distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline
A category of distributed services switch with embedded programmable DPUs overcoming legacy network and security design limitations
CX 10000 offer 3.2 Tbps of switching capacity supporting 1/10/25GbE CX 10040 offer 8 Tbps of switching capacity supporting 32 x 100G, 6 x 400G connectivity
Unified network and security policy through HPE Aruba Networking Fabric Composer
Security ecosystem integration with third-party vendors
Leverage existing AOS-CX cloud-native switching

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Fiber optic connector	QSFP28, QSFP-DD
QSFP28 ports quantity	32
I/O ports	32 x 100GbE QSFP, 6 x 400GbE QSFP-DD, 2 x 10GbE SFP+
Network
Networking standards	IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1t, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ba
Full duplex	Yes
Port mirroring	Yes
Flow control support	Yes
10G support	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Data transmission
Switching capacity	1800 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Security
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Virtual Router Redundancy Protocol (VRRP)	Yes
Routing protocols	BGP4, OSPF, RIP, RIPng, RIP-2
Design
Form factor	2U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	3300 MHz
Memory type	DDR5-SDRAM
Internal memory	65536 MB
Processor manufacturer	AMD
sFlow	Yes
Built-in processor	Yes
Processor model	V3C48
Stackable	Yes
Power
Power consumption (max)	1580 W
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	775 W
Number of power supply units	2
Input current	6 A
Power consumption note	Maximum: 1580W Idle: 650W
Power source	AC
Power supply note	2xS4R52A (Front-to-Back) or 2xS4R53A (Back-to-Front)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	<1 µs (without redirect) <5 µs (with redirect)
Total storage capacity	120 GB
Performance management	CLI REST API SNMP HPE Aruba Networking Fabric Composer HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking Central RJ-45 serial port AMD Pensando PSM USB-C console
Memory and processor	CPU: AMD V3C48 processor Switch memory, drive and flash: 120 GB M.2 SSD, 64 MB SPI Flash, 2 x 32 GB DDR5 SODIMM Series Comment:

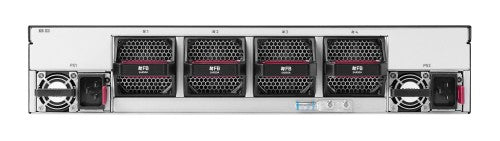

Fan	Field-replaceable, hot-swappable and up to four dual-rotor fans
I/O ports	32 x 100GbE QSFP, 6 x 400GbE QSFP-DD, 2 x 10GbE SFP+
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating altitude	0 - 10000 m
Non-operating altitude	0 - 15000 m
Heat dissipation	1.876 BTU/h
Weight & dimensions
Width	609.6 mm
Depth	88.4 mm
Height	44.3 mm
Weight	23 kg
Optical fiber
Fiber optic connector	QSFP28, QSFP-DD
Technical details
Form factor	2U
Product colour	Black
Stackable	Yes
Processor frequency	3300 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Memory type	DDR5-SDRAM
Internal memory	65536 MB
