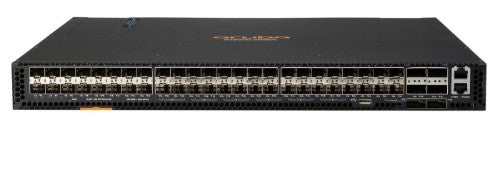

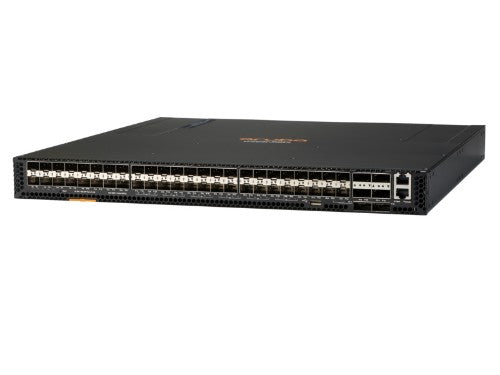

HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 PS Switch Bundle Managed L3 1U Black

Aruba 8320 48p 10G SFP/SFP+ and 6p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle

Description

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE and 40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.

What's new
- High-performance Aruba campus core and aggregation switch with 2.5 Tbps switching capacity.
- ArubaOS-CX automates using REST APIs and Python scripts.
- Monitor and troubleshoot with Aruba Network Analytics Engine.
- High availability, virtualization and simplicity with Aruba VSX.
- Compact 1U switches with 10GbE (SFP/SFP+ or 10GBASE-T) and 40GbE connectivity.
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.

Features

Game-changing Business Agility
- The Aruba 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.
- Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting.
- Aruba Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.
- Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always on networking.
- Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.

Modern Software System Simplifies and Automates
- The Aruba 8320 Switch Series is based on the new ArubaOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks.
- The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
- It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.

High Performance and High Availability
- The Aruba 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
- Aruba’s new high availability technology is Aruba VSX which has been designed from ground up to deliver the continuous availability, virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
- The compact 1U switch series delivers line rate 10GbE and 40GbE connectivity with very low latency for support of full Internet routes. Optimize for your deployment with a model that provides 32 ports of 40GbE, and models with 48 ports of 10GbE (SFP/SFP+ or 10GBASE-T) with 6 ports of 40GbE.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	48
QSFP+ module slots quantity	6
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB 2.0 ports quantity	1
Console port	RJ-45
Network
Cable types supported	Fiber
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
IGMP entries	4094
Data transmission
Packet buffer memory	16 MB
MAC address table	98304 entries
Switching capacity	2500 Gbit/s
Jumbo frames support	Yes
Maximum data transfer rate	40 Gbit/s
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
IGMP entries	4094
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Airflow direction	Front-to-back airflow
Number of fans	5 fan(s)
Performance
Processor frequency	2000 MHz
Noise level	61.1 dB
Mean time between failures (MTBF)	314721 h
Internal memory	16384 MB
Flash memory	8192 MB
Built-in processor	Yes
Packet buffer memory	16 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	357 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Input current	6 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442 mm
Depth	505.5 mm
Height	43.2 mm
Weight	9.4 kg
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	2000 MHz
Noise level	61.1 dB
Mean time between failures (MTBF)	314721 h
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	16 MB
Internal memory	16384 MB
Flash memory	8192 MB
Logistics data
Harmonized System (HS) code	85176990
