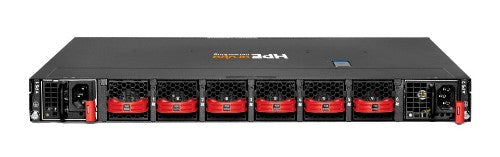

HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl

Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Pwr2Prt Airflow 6Fs 2AC PSU Switch Bdl

Reasons To Buy

High performance and scale

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.
The HPE Aruba Networking CX 9300 Switch Series eases transition from 10GbE and 25GbE to 100GbE/400GbE providing higher scaling with reduced power and a smaller footprint. 400 Gbps port can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE.

Ethernet storage fabric optimized

The HPE Aruba Networking CX 9300 Switch Series enables low-latency and “lossless” network quality of service (QoS) and connectivity characteristics that storage requires.
Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.
Ideal solution for data center, cloud, and storage use cases that support top-of‑rack server and storage connectivity and scale-out leaf‑spine fabrics.

Intelligent analytics

HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
Intelligent pre-processing of data turns raw telemetry into actionable insights.
HPE Aruba Networking Switch Multi-Edit Software support automated configuration and verification.

High performance and high availability

The HPE Aruba Networking Virtual Switching Extension (VSX) is a high availability technology designed from the ground up to deliver continuous availability, virtualization, and simplicity requirements. Redundant and hot-swappable power supplies and fans provide additional resiliency.
HPE Aruba Networking CX 9300 Switch Series delivers advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6. The switch series supports dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks.

Description

The HPE Aruba Networking CX 9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as it transitions server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX 9300-32D switch supports large data center PODS of up to 16834 x 25GbE servers or up to 8192 x 100GbE servers when using 4 x 100G SN transceivers.

What is new supporting point:
Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-to-end visibility of the network fabric underlay and virtualized overlay.
The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	0
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber ports quantity	32
Fiber optic connector	QSFP-DD
I/O ports	CX 9300-32D: 32 ports of 100GbE, 200GbE, or 400GbE 400 Gbps ports can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE CX 9300S-32C8D: 32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4040
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
Data transmission
Throughput	5000 Mpps
Switching capacity	25600 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Number of VLANs	4040
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v2c, SNMP v3, RMON
Routing protocols	BGP4, OSPF, RIP, RIPng, RIP-2
Design
Form factor	1U
Rack mounting	Yes
Airflow direction	Back-to-front airflow
Number of fans	6 fan(s)
Performance
Processor frequency	1700 MHz
Internal memory	32000 MB
Built-in processor	Yes
Power
Power consumption (max)	600 W
Power supply included	Yes
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power consumption note	600W or 615W, Idle: 210W or 221W maximum depending on the model
Power source	AC
Power supply note	2 redundant power supplies, field-replaceable, hot-swappable
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	CX 9300-32D: SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port CX 9300S-32C8D: SNMP REST RJ-45 and USB-C serial console connectors RJ-45 OOBM Port
Memory and processor	CX 9300-32D: 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM CX 9300S-32C8D: 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
Fan	6 redundant fans, field-replaceable, hot-swappable
Weight (imperial)	11.8 kg (26.1 lbs)
I/O ports	CX 9300-32D: 32 ports of 100GbE, 200GbE, or 400GbE 400 Gbps ports can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE CX 9300S-32C8D: 32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Dimensions (W x D x H) (imperial)	43.4 x 438.4 x 590 mm (1.71 x 17.3 x 23.2")
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Heat dissipation	4.435 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4040
Virtual LAN features	Private VLAN
Weight & dimensions
Width	43.5 mm
Depth	438.4 mm
Height	590 mm
Weight	11.8 kg
Weight (imperial)	11.8 kg (26.1 lbs)
Dimensions (W x D x H) (imperial)	43.4 x 438.4 x 590 mm (1.71 x 17.3 x 23.2")
Optical fiber
Fiber optic connector	QSFP-DD
Technical details
Form factor	1U
Processor frequency	1700 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Internal memory	32000 MB
