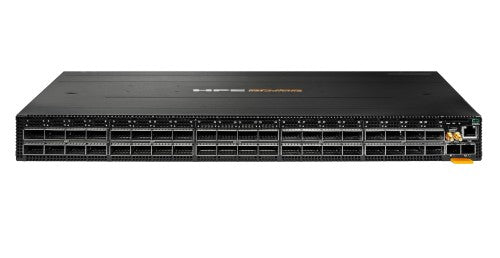

HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle

Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC Bundle

Reasons To Buy

High performance and scale

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.
The HPE Aruba Networking CX 9300 Switch Series eases transition from 10GbE and 25GbE to 100GbE/400GbE providing higher scaling with reduced power and a smaller footprint. 400 Gbps port can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE.

Ethernet storage fabric optimized

The HPE Aruba Networking CX 9300 Switch Series enables low-latency and “lossless” network quality of service (QoS) and connectivity characteristics that storage requires.
Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.
Ideal solution for data center, cloud, and storage use cases that support top-of‑rack server and storage connectivity and scale-out leaf‑spine fabrics.

Intelligent analytics

HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
Intelligent pre-processing of data turns raw telemetry into actionable insights.
HPE Aruba Networking Switch Multi-Edit Software support automated configuration and verification.

High performance and high availability

The HPE Aruba Networking Virtual Switching Extension (VSX) is a high availability technology designed from the ground up to deliver continuous availability, virtualization, and simplicity requirements. Redundant and hot-swappable power supplies and fans provide additional resiliency.
HPE Aruba Networking CX 9300 Switch Series delivers advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6. The switch series supports dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks.

Description

The HPE Aruba Networking CX 9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as it transitions server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX 9300-32D switch supports large data center PODS of up to 16834 x 25GbE servers or up to 8192 x 100GbE servers when using 4 x 100G SN transceivers.

What is new supporting point:
HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-to-end visibility of the network fabric underlay and virtualized overlay.
The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber ports quantity	40
Fiber optic connector	QSFP-DD, QSFP28
Console port	RJ-45/Micro-USB
QSFP28 ports quantity	32
I/O ports	32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4040
Link aggregation	Yes
Flow control support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
Data transmission
Switching capacity	16000 Gbit/s
Jumbo frames support	Yes
Number of VLANs	4040
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv2c, SNMPv3
Routing protocols	BGP4, OSPFv2, OSPFv3, RIP-2, RIPng, VRRP
Design
Form factor	1U
Rack mounting	Yes
Airflow direction	Front-to-back airflow
Number of fans	6 fan(s)
Redundant fans support	Yes
Power
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	600 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power consumption note	Idle: 185W Maximum: 920W Typical: 395W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	SNMP, RJ-45 console port, Micro USB console port
Memory and processor	128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM

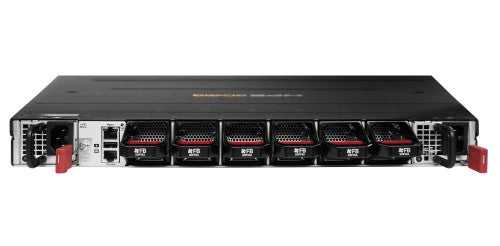

Fan	6 redundant fans, field-replaceable, hot-swappable
Weight (imperial)	11.8 kg (26.1 lbs)
I/O ports	32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Dimensions (W x D x H) (imperial)	43.4 x 438.4 x 590 mm (1.71 x 17.3 x 23.2")
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Heat dissipation	4.435 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4040
Virtual LAN features	Private VLAN
Weight & dimensions
Width	43.5 mm
Depth	438.4 mm
Height	590 mm
Weight	11.8 kg
Weight (imperial)	11.8 kg (26.1 lbs)
Dimensions (W x D x H) (imperial)	43.4 x 438.4 x 590 mm (1.71 x 17.3 x 23.2")
Optical fiber
Fiber optic connector	QSFP-DD, QSFP28
Technical details
Form factor	1U
Rack mounting	Yes
